B82721K2801U030 EPCOS (TDK) – Price, Stock & Datasheet

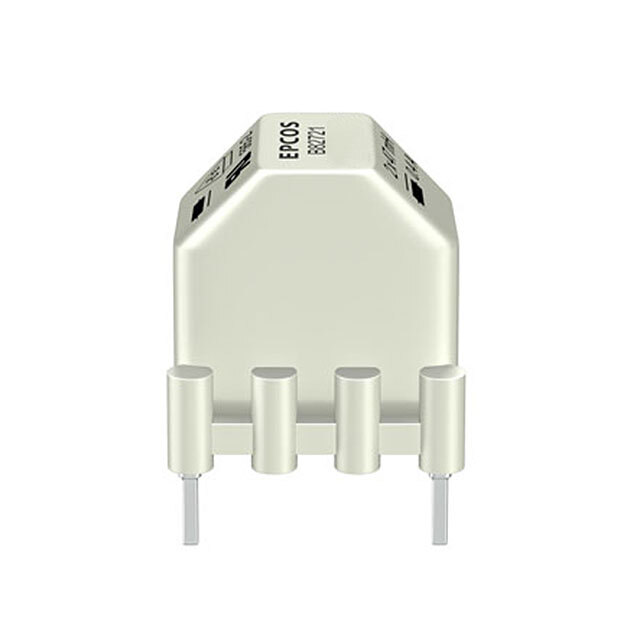

Same model may have multiple batches, images only for reference.

B82721K2801U030

Part No B82721K2801U030
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description 150 µH @ 10 kHz 2 Line Common Mode Choke Through Hole 800mA DCR 470mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series B82721
Packaging Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 150 µH @ 10 kHz
Current Rating (Max) 800mA
DC Resistance (DCR) (Max) 470mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Approval Agency ENEC, UR, VDE
Mounting Type Through Hole
Size / Dimension 0.717" L x 0.520" W (18.20mm x 13.20mm)
Height (Max) 0.803" (20.40mm)
Package / Case Vertical, 4 PC Pin
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1482717-B82721K2801U030
Ultra Librarian 3D Model Ultra Librarian B82721K2801U030 CAD Model
