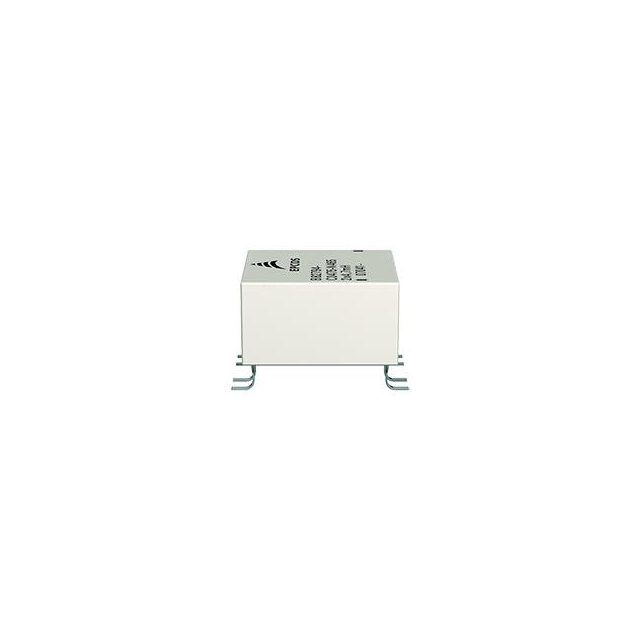

The B82794C0475N465 is a power inductor manufactured by EPCOS (TDK). This inductor is designed for a variety of power applications, offering efficient energy storage and filtering capabilities.

Applications

• DC-DC converters
• Power supplies
• EMI filtering
• Energy storage in power circuits
• Voltage regulators

Features

• High current capability
• Low DC resistance
• Ferrite core material
• Shielded construction to minimize EMI
• Compact size for space-constrained applications
• High saturation current

Benefits

• Improved efficiency in power conversion
• Reduced EMI emissions
• Stable performance over a wide temperature range
• Long operational life
• Reliable performance in demanding applications
• Space saving due to compact design

Additional Details

The B82794C0475N465 inductor is typically used in switching power supplies, where it helps to store energy and smooth out voltage and current waveforms. Its shielded construction minimizes electromagnetic interference (EMI), which is crucial in sensitive electronic devices. The ferrite core provides high inductance and low core losses. The low DC resistance minimizes power dissipation and enhances efficiency. This inductor is available in a variety of inductance values and current ratings to meet specific design requirements. It is suitable for use in industrial equipment, consumer electronics, and automotive applications.

The specific inductance value of the B82794C0475N465 is 4.7uH with a tolerance. Its saturation current is approximately 12A. Its self-resonant frequency is designed to be high to avoid interference with the operating frequency. This inductor meets RoHS compliance standards. It is designed to operate efficiently in temperature ranges that meet most industry standard requirements. Its construction ensures mechanical stability and vibration resistance.
