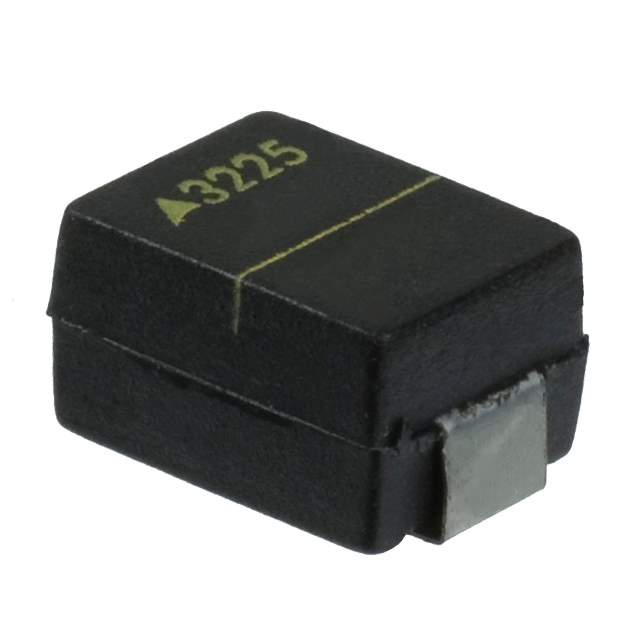

The CU3225K40G2 is a multilayer varistor from EPCOS (TDK), designed for transient voltage suppression (TVS) in various electronic applications. It is part of the varistor family, offering protection against surges and electrostatic discharge (ESD).

Applications

• Power Supplies: Protecting against voltage surges in AC/DC and DC/DC power supplies.
• Automotive Electronics: Safeguarding sensitive components in automotive control units and systems.
• Industrial Equipment: Protecting industrial control systems and machinery from voltage transients.
• Telecom Equipment: Surge protection for communication lines and equipment.
• Consumer Electronics: ESD protection for smartphones, tablets, and other portable devices.

Features

• High Surge Current Capability: Designed to withstand high surge currents without degradation.
• Multilayer Construction: Provides excellent performance and reliability in a compact size.
• Fast Response Time: Quickly clamps transient voltages to protect sensitive components.
• Low Clamping Voltage: Limits the voltage across protected components during a surge event.
• Surface Mount Device (SMD): Suitable for automated assembly and high-density circuit boards.

Benefits

• Enhanced Equipment Reliability: Protects electronic circuits from damage caused by voltage surges and ESD.
• Reduced Downtime: Minimizes failures and maintenance costs associated with transient voltage events.
• Improved Safety: Protects users and equipment from potential hazards related to voltage surges.
• Compact Solution: Provides effective surge protection in a small footprint.
• Compliance with Industry Standards: Meets relevant standards for surge protection and ESD immunity.

Additional Details

The CU3225K40G2 is designed for surface mount technology (SMT) assembly. It is characterized by its varistor voltage, maximum surge current, and clamping voltage. Refer to the EPCOS datasheet for detailed electrical characteristics, including capacitance, energy absorption capability, and operating temperature range. Proper application requires careful consideration of the circuit's voltage and current requirements.

Varistors are voltage-dependent resistors that exhibit a highly non-linear current-voltage characteristic. Under normal operating conditions, the varistor has a high resistance. When a transient voltage exceeds the varistor voltage, the resistance rapidly decreases, diverting the surge current and clamping the voltage to a safe level. After the surge, the varistor returns to its high-resistance state.
