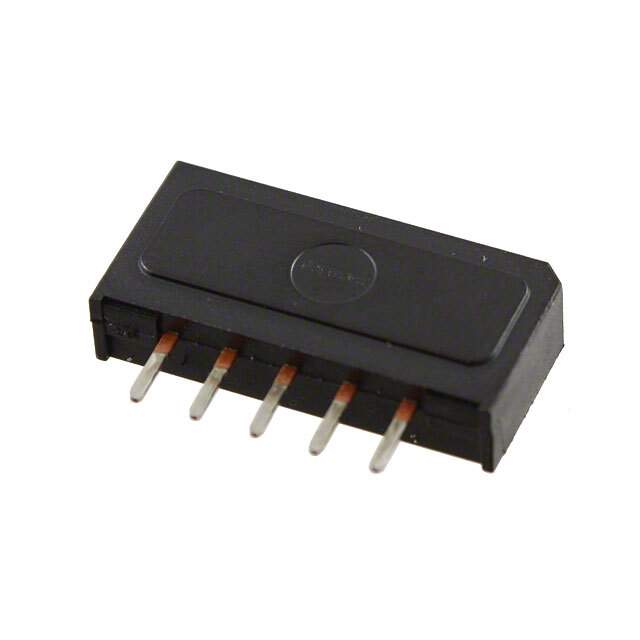

X6966-M100 Real Image
Same model may have multiple batches, images only for reference.

X6966-M100

Part No X6966-M100
Manufacturer EPCOS (TDK)
Catalog SAW Filters
Description FILTER SAW BANDPASS 36.125MHZ
Datasheet
X6966-M100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer EPCOS (TDK)
Packaging Tube/Rail
Status Obsolete(EOL)
Frequency - Center 36.125MHz
Bandwidth 8MHz
Insertion Loss 20.3dB
Applications Digital Cable Filter
Mounting Through Hole
Height (Max) 0.343" (8.70mm)
Dimension 0.681" L x 0.154" W (17.30mm x 3.90mm)
Win Source Part Number 043769-X6966-M100
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian X6966-M100 CAD Model

Description

The EPCOS (TDK) 043769-X6966-M100 is an electronic component that falls under the category of filters.

  • Bandwidth: 8MHz
  • Frequency - Center: 36.125MHz
  • Insertion Loss: 20.3dB
  • Height: 0.343" (8.70mm)
  • Mounting: Through Hole
  • Packaging: Tube/Rail
  • Dimension: 0.681" L x 0.154" W (17.30mm x 3.90mm)
  • Status: Obsolete (EOL)
