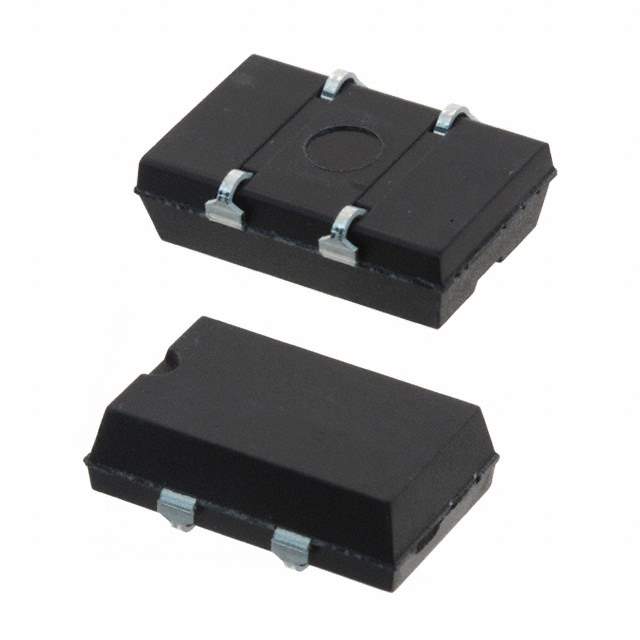

SG-615PTJ 40.0000MC3 Real Image SG-615PTJ 40.0000MC3 Real Image
Same model may have multiple batches, images only for reference.
SG-615PTJ 40.0000MC3 Real Image SG-615PTJ 40.0000MC3 Real Image
SG-615PTJ 40.0000MC3 Real Image SG-615PTJ 40.0000MC3 Real Image
Same model may have multiple batches, images only for reference.

SG-615PTJ 40.0000MC3

Part No SG-615PTJ 40.0000MC3
Manufacturer Epson Company
Catalog Oscillators
Description XTAL OSC XO 40.0000MHZ TTL SMD / 40 MHz XO (Standard) TTL Oscillator 5V Enable/Disable 4-SOJ, 5.08mm pitch
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr EPSON
Series SG-615
Package Tape & Reel
Product Status Obsolete
Base Resonator Crystal
Type XO (Standard)
Frequency 40 MHz
Function Enable/Disable
Output TTL
Voltage - Supply 5V
Frequency Stability ±100ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 35mA
Mounting Type Surface Mount
Package / Case 4-SOJ, 5.08mm pitch
Size / Dimension 0.551" L x 0.341" W (14.00mm x 8.65mm)
Height - Seated (Max) 0.185" (4.70mm)
Current - Supply (Disable) (Max) 28mA
Standard Package 250
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1338312-SG-615PTJ 40.0000MC3
Ultra Librarian 3D Model Ultra Librarian SG-615PTJ 40.0000MC3 CAD Model

Description

The EPSON SG-615PTJ 40.0000MC3 is a surface mount oscillator with a tape and reel package.

  • Manufacturer: EPSON
  • Model: SG-615PTJ 40.0000MC3
  • Mounting Type: Surface Mount
  • Packaging: Tape and Reel
  • Size: 0.551" L x 0.341" W (14.00mm x 8.65mm)
  • Height: 0.185" (4.70mm)
  • Frequency: 40MHz
  • Frequency Stability: ±100ppm
  • Oscillator Type: XO (Standard)
  • Output: TTL
  • Function: Enable/Disable
  • Voltage Supply: 5V
  • Current Supply (Max): 35mA
  • Standard Package: 250
  • Status: Obsolete
