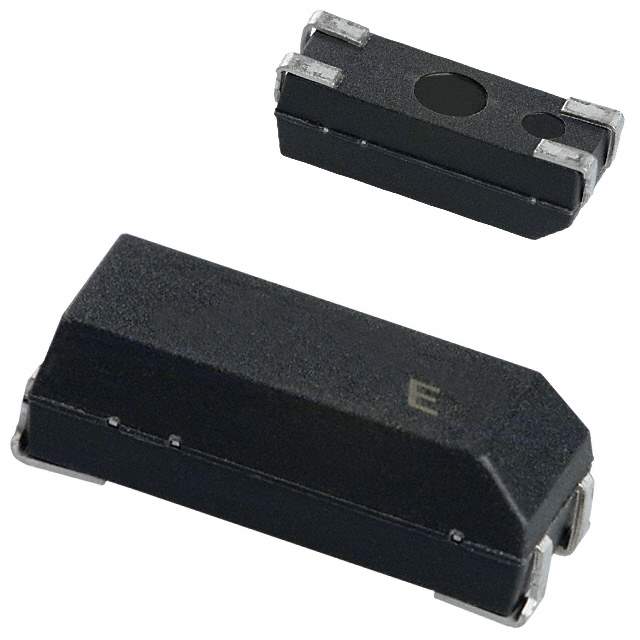

MA-505 32.0000M-C0 Real Image
Same model may have multiple batches, images only for reference.

MA-505 32.0000M-C0

Part No MA-505 32.0000M-C0
Manufacturer Epson Electronics America Inc-Semiconductor Div
Catalog Crystals
Description CRYSTAL 32.0000MHZ 18PF SMD
Datasheet
MA-505 32.0000M-C0 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer EPSON
Packaging Reel - TR
Status Obsolete(EOL)
Type MHz Crystal
Frequency 32MHz
Frequency Stability ±30ppm
Frequency Tolerance ±50ppm
Load Capacitance 18pF
ESR 100 Ohm
Operating Mode 3rd Overtone
Temperature Range - Operating -20°C to 70°C
Mounting SMD (SMT)
Dimension 0.500" L x 0.200" W (12.70mm x 5.08mm)
Height - Seated (Max) 0.181" (4.60mm)
Win Source Part Number 1095145-MA-505 32.0000M-C0
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MA-505 32.0000M-C0 CAD Model

Description

The EPSON MHz Crystal is a reliable and high-performance component designed for use in various electronic applications. EPSON MHz Crystal

  • Frequency: 32MHz
  • Frequency Stability: ±30ppm
  • Supply and Demand Status: balance
  • Popularity: medium
  • Categories: Crystals, Oscillators, and Resonators
  • Application: electronic devices
