Same model may have multiple batches, images only for reference.

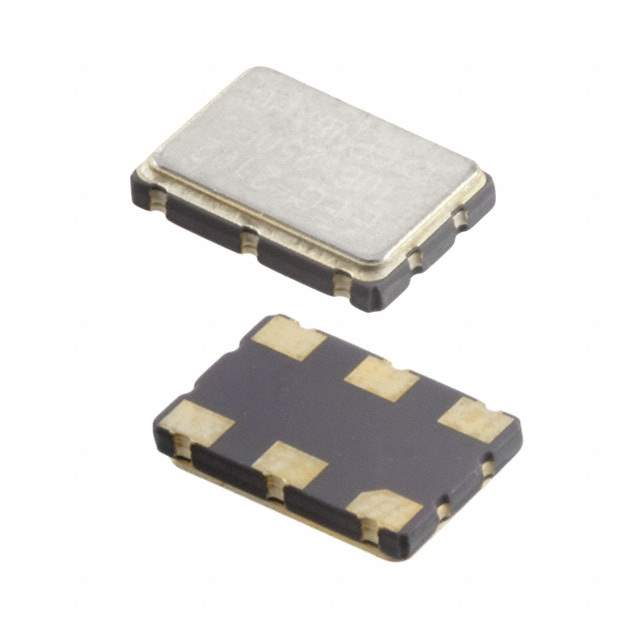

Q3806CA100039 Real Image
Same model may have multiple batches, images only for reference.

Q3806CA100039

Part No Q3806CA100039
Manufacturer Epson Electronics America Inc-Semiconductor Div
Catalog OEM Parts (O - R)
Description Oscillator, Spxo, EG-2102CA, 125 Mhz
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Accuracy 0.01 %
Mounting SMD (SMT)
Case / Package 125
Frequency 125 MHz
Maximum Operating Temperature 70 °C
Max Supply Current 100 mA
Min Operating Temperature 0 °C
Number of Pins 6
Operating Supply Voltage 2.5 V
REACH SVHC Unknown
RoHS Compliant
Win Source Part Number 1086560-Q3806CA100039
Categories OEM Parts(O-R)
Manufacturer Epson Electronics America Inc-Semiconductor Div
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian Q3806CA100039 CAD Model

Description

The Epson Electronics America Inc-Semiconductor Div Q3806CA100039 is a quartz crystal oscillator with a frequency of 125MHz and an accuracy of 0.01%.

  • Frequency: 125MHz
  • Accuracy: 0.01%
  • Pins: Six
  • Supply Voltage: 2.5V
  • Package Size: 125
  • Mounting: Surface Mount
  • Operating Temperature Range: 0 °C to 70 °C
  • Reputation: High-quality performance and reliability
