Same model may have multiple batches, images only for reference.

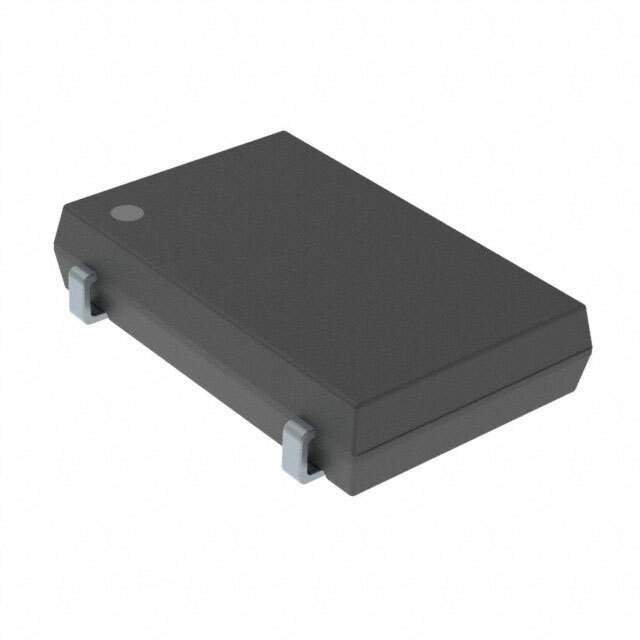

SG-3030JF 32.7680KB0: ROHS Real Image
Same model may have multiple batches, images only for reference.

SG-3030JF 32.7680KB0: ROHS

Part No SG-3030JF 32.7680KB0: ROHS
Manufacturer Epson Electronics America Inc-Semiconductor Div
Catalog Oscillators
Description OSC XO 32.768KHZ CMOS SMD
Datasheet
SG-3030JF 32.7680KB0: ROHS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer EPSON
Packaging Reel - TR
Status Active
Type XO (Standard)
Frequency 32.768kHz
Output CMOS
Supply Voltage - Operating 1.5 V to 5.5 V
Temperature Range - Operating -20°C to 70°C
Current - Supply (Max) 2μA
Mounting SMD (SMT)
Dimension 0.280" L x 0.181" W (7.10mm x 4.60mm)
Height - Seated (Max) 0.059" (1.50mm)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 512226-SG-3030JF 32.7680KB0: ROHS
Ultra Librarian 3D Model Ultra Librarian SG-3030JF 32.7680KB0: ROHS CAD Model

Description

The XO (Standard) is an electronic component manufactured by EPSON.

  • Output: CMOS
  • Frequency: 32.768kHz
  • Mounting Type: SMD (SMT)
  • Height: 0.059" (1.50mm)
  • Operating Temperature Range: -20°C to 70°C
  • Operating Supply Voltage: 1.5 V to 5.5 V
  • Category: Crystals, Oscillators, Resonators
