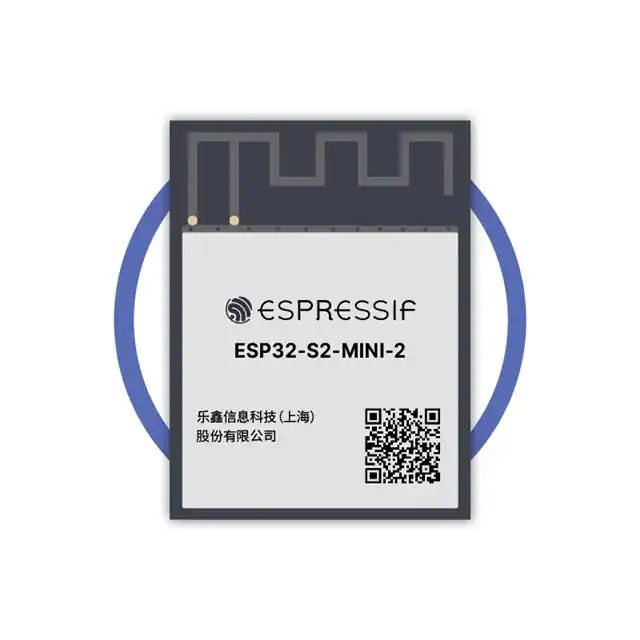

ESP32-S2-MINI-2-N4

Name: ESP32-S2-MINI-2-N4
Brand: Espressif
SKU: 1354346
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ESP32-S2-MINI-2-N4
Manufacturer	Espressif
Catalog	RF Transceiver Modules
Description	SMD MODULE W/PCB ANTENNA / WiFi 802.11b/g/n Transceiver Module 2.4GHz PCB Trace Surface Mount
Datasheet	ESP32-S2-MINI-2-N4 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	RF and Wireless - RF Transceiver Modules and Modems
Mfr	Espressif Systems
Series	ESP32
Product Status	Active
RF Family/Standard	WiFi
Protocol	802.11b/g/n
Modulation	-
Frequency	2.4GHz
Data Rate	150Mbps
Power - Output	19.5dBm
Sensitivity	-97dBm
Serial Interfaces	ADC, GPIO, I²C, I²S, SPI, PWM, UART, USB
Antenna Type	PCB Trace
Utilized IC / Part	ESP32-S2FH4
Memory Size	4MB Flash, 128kB ROM, 336kB SRAM
Voltage - Supply	3V ~ 3.6V
Current - Receiving	63mA ~ 68mA
Current - Transmitting	160mA ~ 310mA
Mounting Type	Surface Mount
Temperature Range - Operating	-40°C ~ 105°C (TA)
Package / Case	56-VFQFN Exposed Pad
Base Product Number	ESP32-S2
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	5A992C
HTSUS	8517.62.0090
Win Source Part Number	1354346-ESP32-S2-MINI-2-N4
Ultra Librarian 3D Model	Ultra Librarian ESP32-S2-MINI-2-N4 CAD Model

Alternative Products

Description

The ESP32-S2-MINI-2-N4 is an RF transceiver module manufactured by Espressif Systems. It operates in a temperature range of -40°C to 105°C, making it suitable for various environments.

Frequency: 2.4GHz
Package / Case: 56-VFQFN Exposed Pad
Voltage - Supply: 3V ~ 3.6V
Memory Size: 4MB Flash, 128kB ROM, 336kB SRAM
Protocol: WiFi
Data Rate: 150Mbps
Serial Interfaces: ADC, GPIO, I²C, I²S, SPI, PWM, UART, USB
