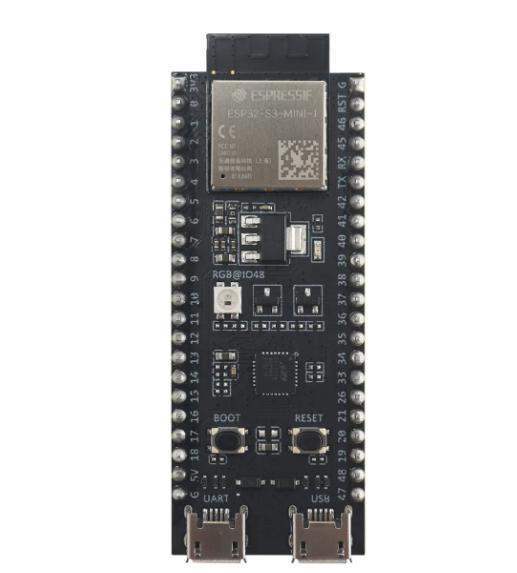

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1201463-ESP32-S3-DEVKITM-1-N8
Manufacturer Espressif Systems
Category Development Boards, Kits, Programmers- Evaluation Boards- RF Evaluation and Development Kits, Boards
Series ESP32-S
Package Bulk
Product Status Active
Type Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® 5
Frequency 2.4GHz
For Use With/Related Products ESP32-S3-MINI-1-N8
Supplied Contents Board(s)
Base Product Number ESP32-S3
Ultra Librarian 3D Model Ultra Librarian ESP32-S3-DEVKITM-1-N8 CAD Model

Description

The Espressif Systems ESP32-S series development board is an evaluation board for RF applications.

  • Function: Transceiver
  • Protocols: 802.11 b/g/n (Wi-Fi), Bluetooth® 5
  • Package: Bulk
  • Module: ESP32-S3-MINI-1-N8
  • Frequency: 2.4GHz
  • Supplied Contents: Board
  • Status: Active
