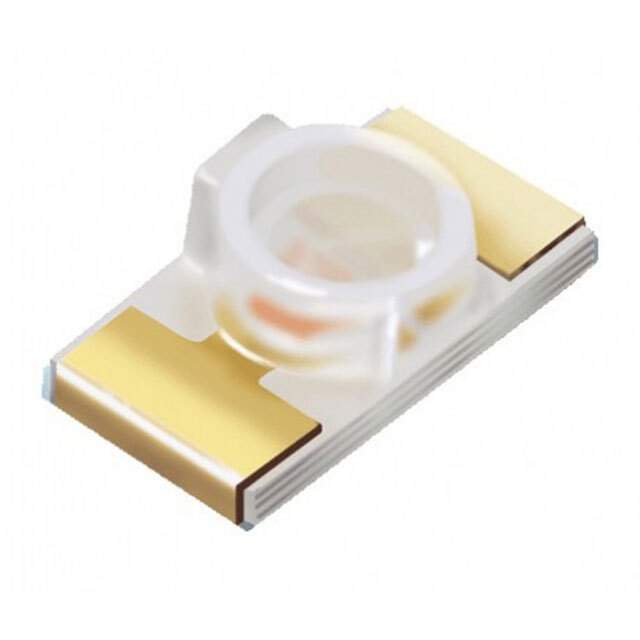

25-21UYC/S530-A2/TR8 Real Image
Same model may have multiple batches, images only for reference.

25-21UYC/S530-A2/TR8

Part No 25-21UYC/S530-A2/TR8
Manufacturer Everlight Electronics Co Ltd
Catalog LED Indication - Discrete
Description LED YELLOW CLEAR 2SMD  /  Yellow 589nm LED Indication - Discrete 2V 1206 (3216 Metric)
Datasheet
25-21UYC/S530-A2/TR8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Everlight Electronics Co Ltd
Package Tape & Reel
Color Yellow
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 45mcd
Lens Style Round with Domed Top
Lens Size 1.10mm Dia
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 60°
Mounting SMD (SMT)
Wavelength - Dominant 589nm
Wavelength - Peak 591nm
Package / Case 1206 (3216 Metric)
Supplier Device Package 2-SMD
Dimension 3.20mm L x 1.60mm W
Height (Max) 1.20mm
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Other Names 3025216206,1080-1595-6,1080-1595-2,1080-1595-1
Standard Package 2,000
Win Source Part Number 1035897-25-21UYC/S530-A2/TR8
Ultra Librarian 3D Model Ultra Librarian 25-21UYC/S530-A2/TR8 CAD Model

Description

The Everlight 1035897-25-21UYC/S530-A2/TR8 is a yellow LED indication component that has been manufactured by Everlight Electronics Co Ltd.

  • Viewing Angle: 60 degrees
  • Millicandela Rating: 45mcd
  • Forward Voltage: 2V
  • Dominant Wavelength: 589nm
  • Package: Tape and Reel (2,000 pieces)
  • Dimension: 3.20mm L x 1.60mm W
  • Lens Size: 1.10mm Dia
  • Estimated Lead Time: 11 weeks
