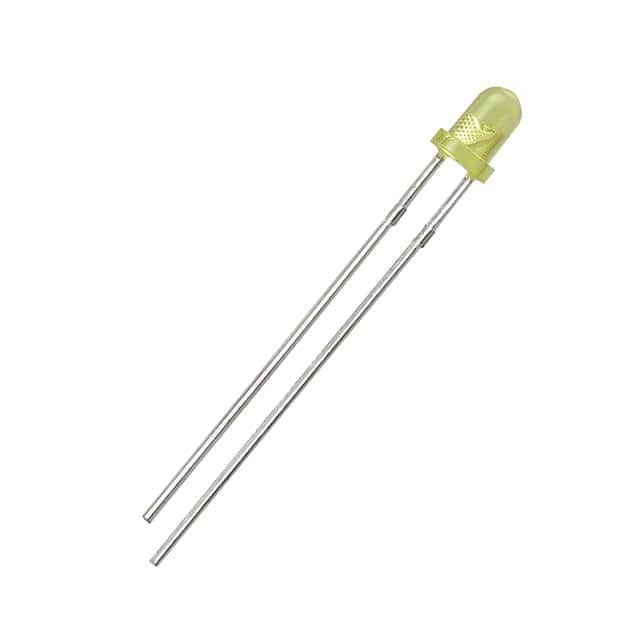

Same model may have multiple batches, images only for reference.
HIR204/H0
Same model may have multiple batches, images only for reference.

HIR204/H0

Part No HIR204/H0
Manufacturer Everlight Electronics Co Ltd
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 850NM 100MA RADIAL
Datasheet
HIR204/H0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Emitters - Infrared, UV, Visible
Mfr Everlight Electronics Co Ltd
Package Bulk
Product Status Active
Type Infrared (IR)
Current - DC Forward (If) (Max) 100mA
Radiant Intensity (Ie) Min @ If 4mW/sr @ 20mA
Wavelength 850nm
Voltage - Forward (Vf) (Typ) 1.45V
Viewing Angle 40°
Orientation Top View
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Through Hole
Package / Case Radial
Base Product Number HIR204
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 850343-HIR204/H0
Ultra Librarian 3D Model Ultra Librarian HIR204/H0 CAD Model

Description

The 850343-HIR204/H0 is an infrared (IR) LED emitter in a through-hole package.

  • Forward Voltage (Vf): 1.45V
  • Forward Current (If): 100mA
  • Viewing Angle: 40 degrees
  • Wavelength: 850nm
  • Radiant Intensity (Ie): 4mW/sr @ 20mA
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: Everlight Electronics Co Ltd
  • Product Status: Active
