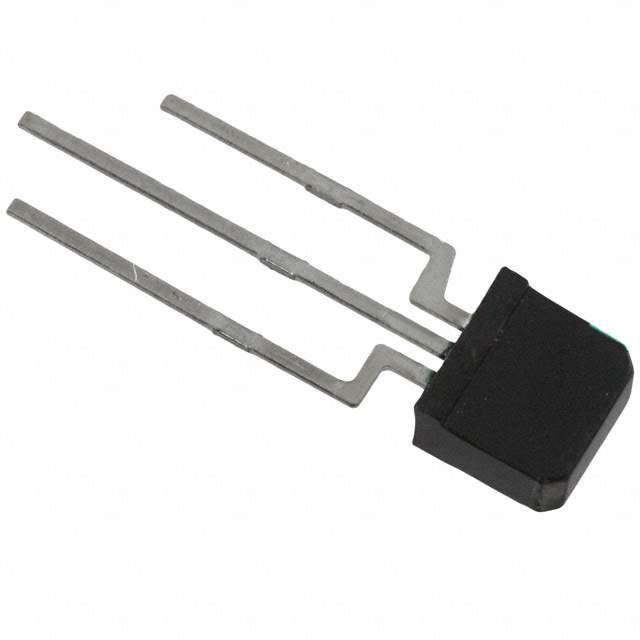

PT2559B/L2/H2 Real Image
Same model may have multiple batches, images only for reference.

PT2559B/L2/H2

Part No PT2559B/L2/H2
Manufacturer Everlight Electronics Co Ltd
Catalog Optical Sensors - Phototransistors
Description PHOTOTRANSISTOR SIDE FACE BK RAD
Datasheet
PT2559B/L2/H2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Everlight Electronics Co Ltd
Packaging Bulk
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Maximum Current Collector 20mA
Current - Dark (Id) (Max) 100nA
Wavelength 940nm
Mounting Through Hole
Orientation Side View
Temperature Range - Operating -25°C to 85°C (TA)
Dimension Radial, 3 Lead, Side View
Win Source Part Number 210306-PT2559B/L2/H2
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PT2559B/L2/H2 CAD Model

Description

The Everlight Electronics PT2559B/L2/H2 is a through-hole mounted side view infrared emitter with a wavelength of 940nm.

  • Mounting Type: through-hole mounted
  • View: side view
  • Wavelength: 940nm
  • Current-dark (Id): 100nA (max)
  • Maximum current collector: 20mA
  • VCEO maximum collector-emitter breakdown voltage: 30V
  • Ideal for: sensors and transducers
  • Package: bulk
  • Dimension: radial, 3-lead, side view
  • Temperature range for operating: -25°C to 85°C (TA)
  • Supply and demand status: sufficient
