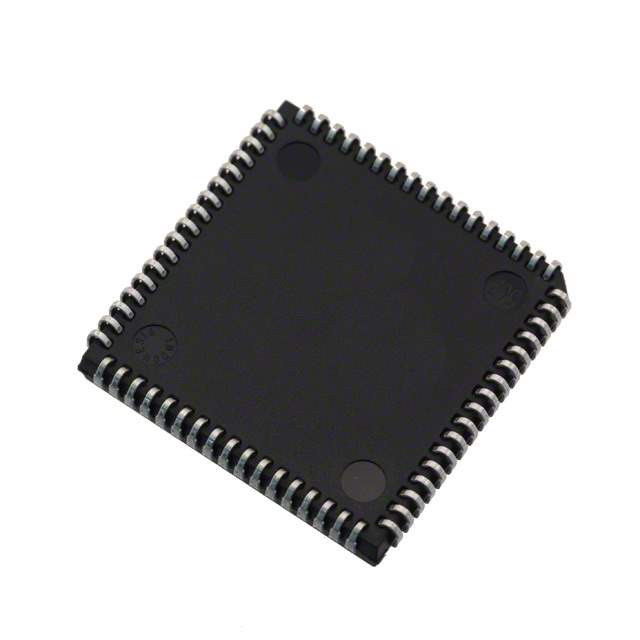

The ST68C554CJ68-F is a Quad Universal Asynchronous Receiver/Transmitter (UART) with a parallel interface manufactured by Exar Corporation (now part of MaxLinear). This device provides four independent UART channels, each capable of asynchronous serial communication. It's designed to interface with a microprocessor or microcontroller through a parallel bus and provides flexible serial communication capabilities for various applications.

Applications

• Serial Communication Ports: Used to add multiple serial communication ports to embedded systems.
• Industrial Automation: Employed in industrial control systems for serial communication with sensors, actuators, and other devices.
• Point-of-Sale (POS) Systems: Utilized in POS terminals for connecting peripherals such as barcode scanners, printers, and cash drawers.
• Data Acquisition Systems: Used in data acquisition systems for collecting data from multiple serial devices.
• Networking Equipment: Implemented in networking devices for console ports and other serial communication interfaces.

Features

• Four Independent UART Channels: Provides four independent UART channels for simultaneous serial communication.
• Parallel Interface: Interfaces with a microprocessor or microcontroller through a parallel bus.
• Programmable Baud Rate Generator: Each UART channel features a programmable baud rate generator for flexible communication speeds.
• FIFO Buffers: Includes FIFO (First-In, First-Out) buffers for both transmit and receive data, improving data throughput.
• Interrupt Support: Provides interrupt signals to the host processor for efficient handling of serial communication events.

Benefits

• Increased Serial Communication Capacity: Provides multiple UART channels to expand serial communication capabilities.
• Flexible Communication: Programmable baud rate generators and FIFO buffers enable flexible and efficient serial communication.
• Reduced Processor Overhead: FIFO buffers and interrupt support reduce the processing overhead required for serial communication.
• Simplified Interface: Parallel interface simplifies integration with a variety of microprocessors and microcontrollers.
• Enhanced System Performance: Improves overall system performance by providing efficient serial communication capabilities.

The ST68C554CJ68-F Quad UART offers a comprehensive solution for applications requiring multiple serial communication channels. Its flexible features and simplified interface make it a valuable component for a range of embedded systems. Refer to the Exar Corporation datasheet for detailed specifications, including timing characteristics, electrical parameters, and package information, necessary for proper integration and application design.
