Same model may have multiple batches, images only for reference.

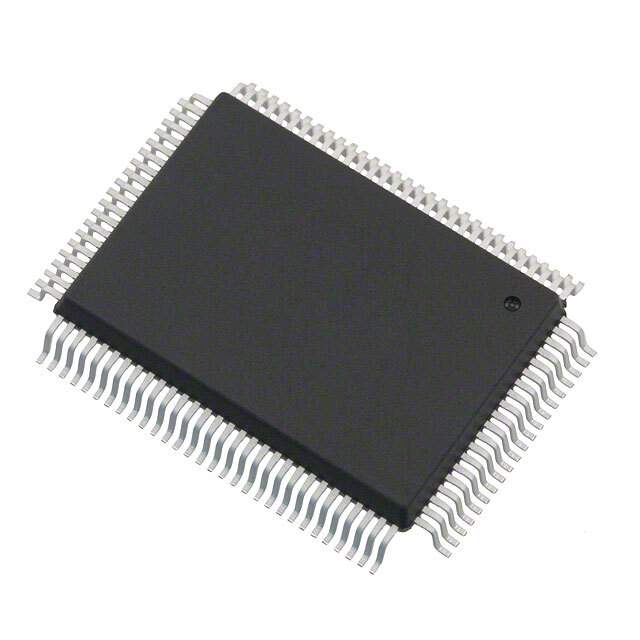

XR16C864IQ-F Real Image
Same model may have multiple batches, images only for reference.

XR16C864IQ-F

Part No XR16C864IQ-F
Manufacturer Exar Corporation
Catalog Interface - UARTs (Universal Asynchronous Receiver Transmitter)
Description IC UART FIFO 128B QUAD 100QFP
Datasheet
XR16C864IQ-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Exar Corporation
Packaging Tray
Status Active
Features Internal Oscillator, Timer/Counter
Number of Channels 4, QUART
FIFO's 128 Byte
Protocol RS232, RS485
Data Rate (Max) 2Mbps
Supply Voltage - Operating 2.97 V to 5.5 V
With Auto Flow Control Yes
With IrDA Encoder/Decoder Yes
With False Start Bit Detection Yes
With Modem Control Yes
Mounting SMD (SMT)
Case / Package 100-QFP (14x20)
Win Source Part Number 138942-XR16C864IQ-F
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian XR16C864IQ-F CAD Model

Description

The Exar Corporation XR16C864IQ-F is an integrated circuit with active status.

  • Features: Internal oscillator, timer/counter
  • Mounting: Surface mount technology
  • Channels: Four
  • Protocols: RS232 and RS485
  • Data Rate: Up to 2Mbps
  • FIFOs: 128-byte FIFOs
  • Control: Auto flow control, IrDA encoder/decoder, false start bit detection, and modem control
  • Case: 100-QFP (14x20)
  • Supply Voltage: 2.97V to 5.5V
  • Win Source Part Number: 138942-XR16C864IQ-F
