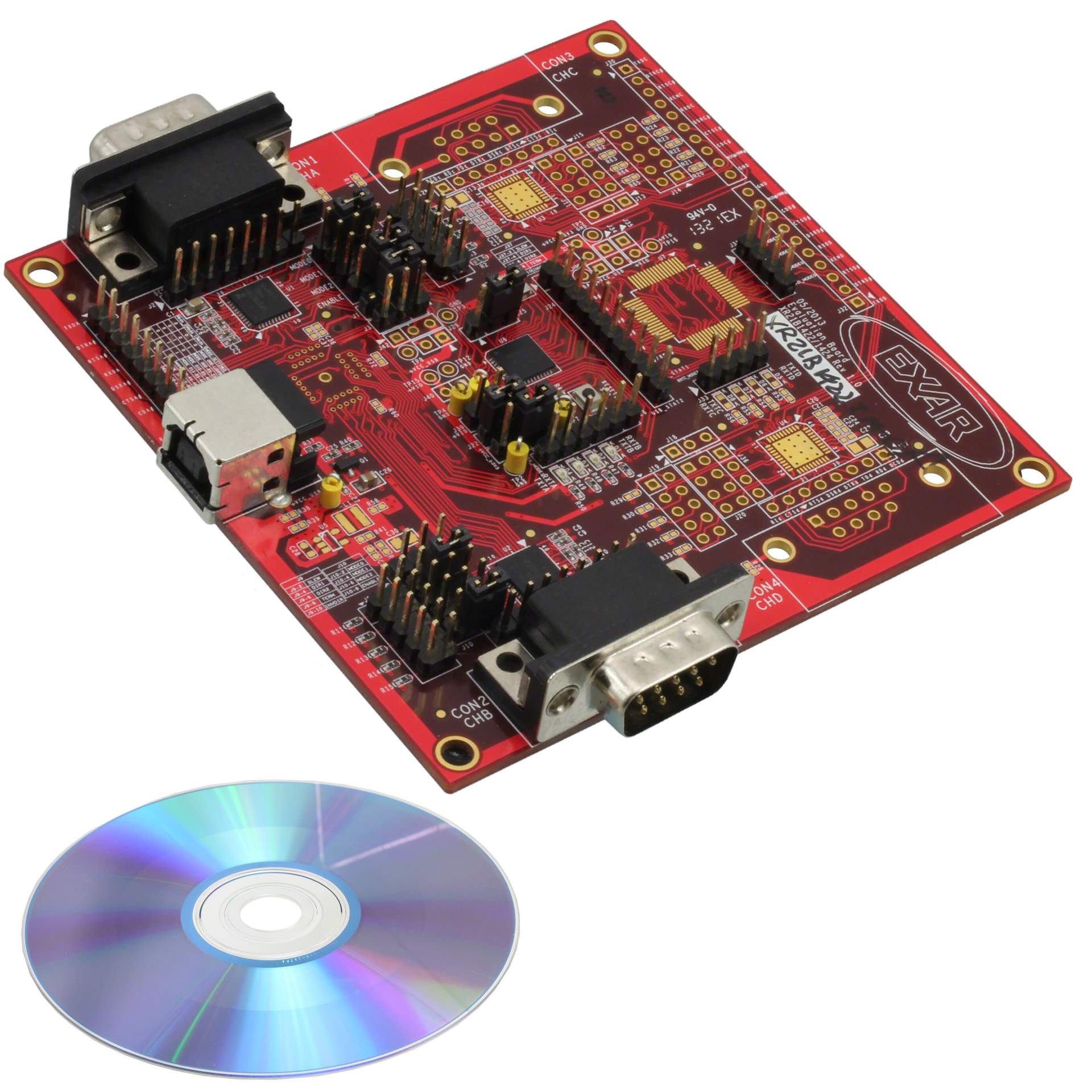

The XR21B1422IL40-0A-EVB is an evaluation board designed to demonstrate the capabilities of the XR21B1422, a dual UART (Universal Asynchronous Receiver/Transmitter) with enhanced features. Manufactured by Exar Corporation, this evaluation board facilitates the testing and integration of the XR21B1422 into various embedded systems and communication applications.

Applications

• UART Interface Evaluation: Enables testing and verification of UART communication.
• Software Development: Supports software development for systems using the XR21B1422 UART.
• Hardware Prototyping: Facilitates prototyping of hardware designs incorporating the XR21B1422.
• System Integration: Aids in integrating the XR21B1422 into existing or new systems.
• Communication Interface Testing: Used for testing serial communication interfaces.

Features

• XR21B1422 Dual UART: Features the Exar XR21B1422 dual UART chip.
• Easy Access to UART Signals: Provides convenient access to all UART signals for testing and interfacing.
• On-Board Connectors: Includes connectors for easy connection to external devices.
• USB Interface: Offers a USB interface for communication with a host computer.
• Power Supply Options: Supports various power supply options for flexibility in different setups.
• Test Points: Equipped with test points for easy signal probing and debugging.

Benefits

• Simplified Evaluation: Simplifies the evaluation process of the XR21B1422 UART.
• Faster Prototyping: Accelerates the prototyping phase of hardware and software development.
• Reduced Development Time: Reduces development time by providing a ready-to-use evaluation platform.
• Ease of Integration: Eases the integration of the XR21B1422 into existing systems.
• Comprehensive Testing: Allows for comprehensive testing of UART functionality.

Additional Details

The XR21B1422 is a dual UART that supports data rates up to 6 Mbps and includes features such as automatic hardware and software flow control, automatic RS-485 half-duplex control, and a fractional baud rate generator. The evaluation board allows users to explore these features and evaluate the performance of the UART in their specific applications. The board typically comes with example software and documentation to help users get started quickly. It's a valuable tool for engineers and developers working with serial communication in embedded systems, industrial automation, and other applications requiring reliable and efficient UART functionality. Detailed schematics and user manuals are generally available from Exar (now part of Renesas) to assist in using the evaluation board effectively.
