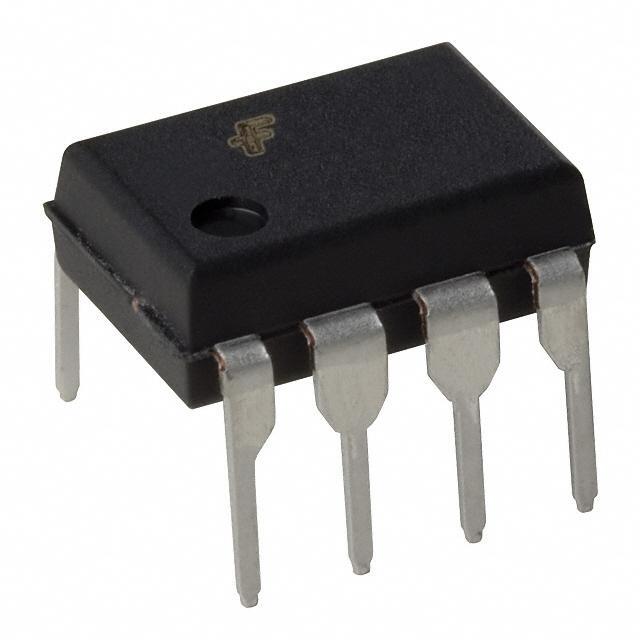

6N136M Fairchild/ON Semiconductor 6N136M Real Image
Same model may have multiple batches, images only for reference.
6N136M Fairchild/ON Semiconductor 6N136M Real Image
6N136M Fairchild/ON Semiconductor 6N136M Real Image
Same model may have multiple batches, images only for reference.

6N136M

Part No 6N136M
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV TRANS W/BASE 8DIP
Datasheet
6N136M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 19% @ 16mA
Maximum DC Current Transfer Ratio 50% @ 16mA
Switching Turn-On and Turn-Off Time 250ns, 260ns
Input Type DC
Maximum Output Voltage 20V
Channel Output Current 8mA
Forward Voltage 1.45V
Continuous forward current- Max 25mA
Temperature Range - Operating -40°C to 100°C
Mounting Through Hole
Case / Package 8-DIP
Win Source Part Number 006377-6N136M
Family Name 6N136M
Introduction Date March 27, 2002
ECCN EAR99
Country of Origin Japan, Thailand
Halogen Free Compliant
Estimated EOL Date 2025
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian 6N136M CAD Model

Description

Product Overview

The 6N136M is a versatile optocoupler, perfect for various applications requiring both data isolation and high-speed data transfer. Its design minimizes cross-talk and enhances signal clarity.

Features and Benefits

  • High-speed data transmission possibilities.
  • Isolation voltage rated at 5,000 Vrms.
  • Excellent noise immunity and low power requirements.

Applications

  • Automotive electronics.
  • Security systems.
  • Signal and data isolation.
