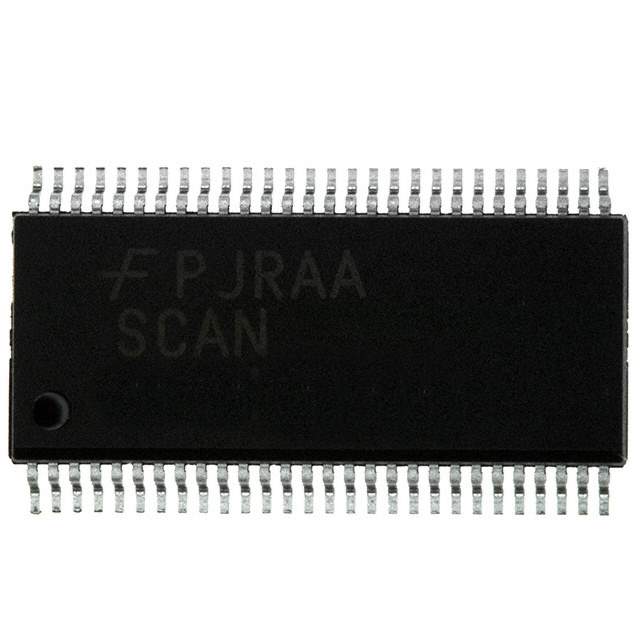

74LCX16821MEA Real Image
Same model may have multiple batches, images only for reference.

74LCX16821MEA

Part No 74LCX16821MEA
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Flip Flops
Description IC D-TYPE POS TRG DUAL 56SSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Fairchild/ON Semiconductor
Series 74LCX
Packaging Tube
Part Status Obsolete(EOL)
Function Standard
Type D-Type
Output Type Tri-State, Non-Inverted
Number of Elements 2
Number of Bits per Element 10
Clock Frequency 150MHz
Max Propagation Delay @ V, Max CL 6.2ns @ 3.3V, 50pF
Current - Output High, Low 24mA, 24mA
Operating Supply Voltage 2 V ~ 3.6 V
Current - Quiescent 20μA
Input Capacitance 7pF
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting SMD
Package 56-BSSOP (0.295", 7.50mm Width)
Win Source Part Number 765555-74LCX16821MEA
Popularity Medium
Supply and Demand Status Limited
Family Name 74LCX16821
Introduction Date May 17, 1999
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 74LCX16821MEA CAD Model

Description

The Fairchild/ON Semiconductor 74LCX16821MEA is a high-quality integrated circuit product that features two D-type elements with 10 bits per element.

  • Packaging: Tube
  • Output Type: Tri-state, non-inverted
  • Operating Temperature: -40°C to 85°C
  • Package: 56-BSSOP (0.295", 7.50mm Width)
  • Maximum Propagation Delay: 6.2ns @ 3.3V, 50pF
  • Quiescent Current: 20μA
  • Input Capacitance: 7pF
  • Operating Supply Voltage: 2V to 3.6V
  • Clock Frequency: 150MHz
  • Status: Obsolete (EOL)
  • Compliance: Halogen-free
