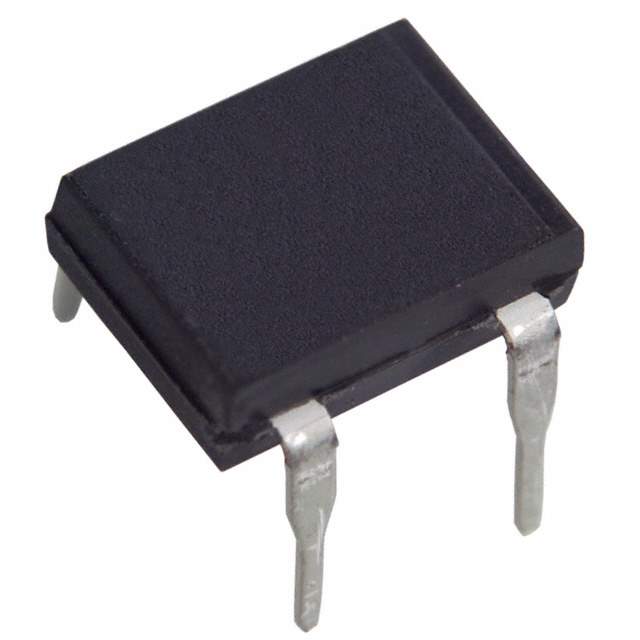

DF005M Real Image
Same model may have multiple batches, images only for reference.

DF005M

Part No DF005M
Manufacturer Fairchild/ON Semiconductor
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 50V 1.5A 4-DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 50V
Current - Average Rectified (Io) 1.5A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
Current - Reverse Leakage @ Vr 10μA @ 50V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package 4-DIP
Win Source Part Number 014115-DF005M
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Power Management
Ultra Librarian 3D Model Ultra Librarian DF005M CAD Model

Description

DF005M

The DF005M is a multi-purpose electronic component designed for efficient and effective circuit control. Its impressive specifications ensure it meets the demands of both basic and complex electronic systems.

Features and Benefits

  • High surge current capability for enhanced protection
  • Compact size facilitating easy installation
  • Proven reliability in varying environmental conditions

Applications

  • Rectifier circuits
  • Voltage regulation projects
  • Electric motor control
