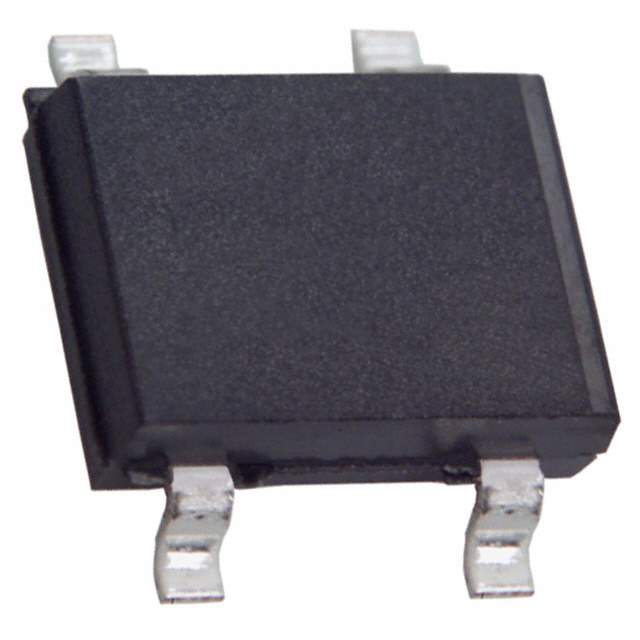

DF01S Real Image
Same model may have multiple batches, images only for reference.

DF01S

Part No DF01S
Manufacturer Fairchild/ON Semiconductor
Catalog Bridge Rectifiers
Description IC RECT BRIDGE 100V 1.5A 4-SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Fairchild Semiconductor
Standard Package 1
Category Discrete Semiconductor Products
Family Bridge Rectifiers
Packaging Reel
Diode Type Single Phase
Voltage - Peak Reverse (Max) 100V
Current - DC Forward (If) (Max) 1.5A
Mounting Style SMD/SMT
Package 4-SMD Gull Wing
Manufacturer Device Package 4-SDIP
Catalog SMT Bridge Rectifiers
Win Source Part Number 080420-DF01S
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Power Management
Ultra Librarian 3D Model Ultra Librarian DF01S CAD Model

Description

DF01S Bridge Rectifier

The DF01S is a versatile bridge rectifier designed to efficiently convert alternating current (AC) to direct current (DC). This component is ideal for various power supply applications and projects requiring efficient power rectification.

Applications

  • Power supply units
  • Battery chargers
  • DC motor drives
  • HVAC systems

Features and Benefits

  • Compact package for space-saving designs
  • High surge current capability
  • Low forward voltage drop for enhanced efficiency
  • Reliable thermal performance

With its robust performance and reliability, the DF01S serves as a critical component in numerous electronic circuits requiring consistent and efficient voltage conversion.
