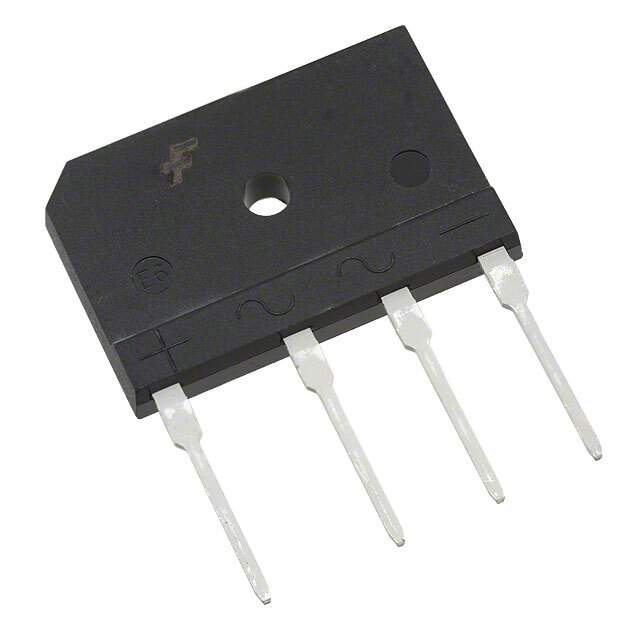

DFB20100 Real Image
Same model may have multiple batches, images only for reference.

DFB20100

Part No DFB20100
Manufacturer Fairchild/ON Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 20A 1KV TS6P
Datasheet
DFB20100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Bulk
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1000V
Current - Average Rectified (Io) 20A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 20A
Current - Reverse Leakage @ Vr 10μA @ 1000V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TS-6P
Win Source Part Number 136329-DFB20100
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1,200
Ultra Librarian 3D Model Ultra Librarian DFB20100 CAD Model

Description

Description

The DFB20100 component stands as a cornerstone for efficient energy management and robust performance. It is particularly suited for applications that demand high stability and efficiency.

Features and Benefits

  • Exceptional stability under various conditions
  • Optimized energy consumption
  • High thermal conductivity

Applications

  • Smart grids and infrastructure
  • Medical electronic equipment
  • Industrial machinery controls

Choose the DFB20100 for applications where long-term reliability and efficiency are critical requirements.
