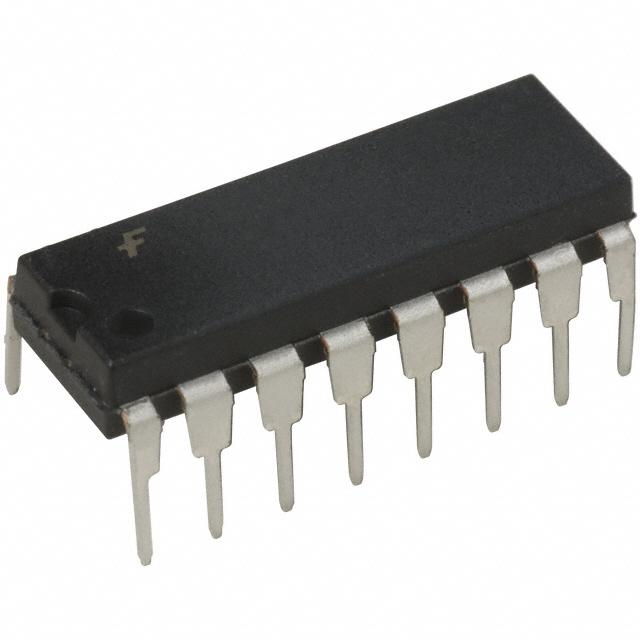

The DM74155N is a dual 2-line to 4-line decoder/demultiplexer manufactured by Fairchild/ON Semiconductor. It contains two identical 2-to-4 line decoders, each with its own enable input. This allows it to function as either two independent decoders or a single 3-to-8 line decoder.

Applications:

• Address decoding in memory systems
• Data routing in digital circuits
• Chip select generation
• Control signal distribution
• Seven-segment display decoding

Features:

• Dual 2-line to 4-line decoders
• Each decoder has an enable input
• Can be used as a 3-line to 8-line decoder
• High fan-out capability
• DIP package for easy breadboarding and prototyping

Benefits:

• Versatile decoding and demultiplexing functionality
• Reduces component count in digital systems
• Simplifies circuit design
• Cost-effective solution for decoding applications
• Easy to use in educational and hobbyist projects

Additional Details:

The DM74155N operates from a 5V power supply. The outputs are active-low; that is, the selected output goes low while all other outputs remain high. The device is enabled when the enable input is low. The 'N' suffix indicates a plastic dual in-line package (DIP). The datasheet provides detailed electrical characteristics, timing diagrams, and application notes. Proper decoupling capacitors should be used to ensure stable operation. The device is TTL compatible. When used as a 3-to-8 line decoder, the two enable inputs are tied together and used as the third address input. The propagation delay from input to output is typically around 25 ns. This device has a relatively high fanout. Datasheets should be consulted for specific use cases.
