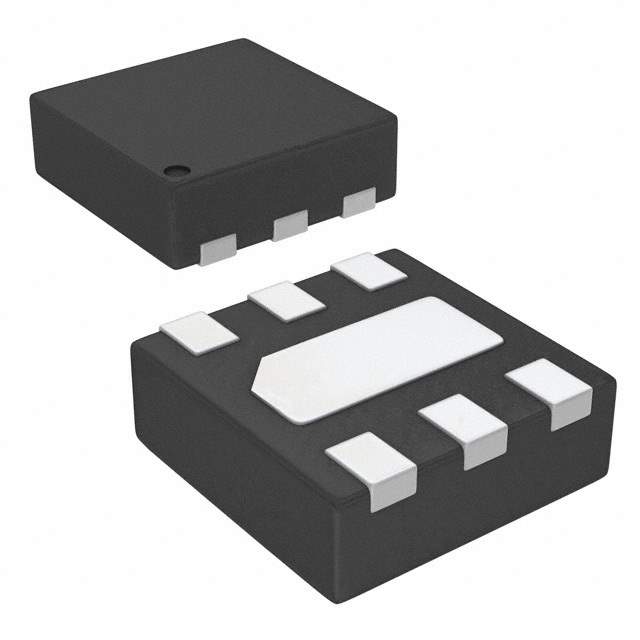

FAN3100TMPX Real Image FAN3100TMPX real image15414
Same model may have multiple batches, images only for reference.
FAN3100TMPX Real Image FAN3100TMPX real image15414
FAN3100TMPX Real Image FAN3100TMPX real image15414
Same model may have multiple batches, images only for reference.

FAN3100TMPX

Part No FAN3100TMPX
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Gate Drivers
Description IC GATE DRVR SGL TTL 2A 6MLP
Datasheet
FAN3100TMPX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Driven Configuration Low-Side
Channel Type Single
Number of Drivers 1
Gate Type N-Channel MOSFET
Supply Voltage - Operating 4.5 V to 18 V
Logic Voltage - VIL, VIH 0.8V, 2V
Current - Peak Output (Source, Sink) 3A, 3A
Input Type Inverting, Non-Inverting
Rise and Fall Time 13ns, 9ns
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 6-MLP (2x2)
Win Source Part Number 1037626-FAN3100TMPX
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FAN3100TMPX CAD Model

Description

The FAN3100TMPX is a single channel type device manufactured by Fairchild/ON Semiconductor. It has an SMD (SMT) mounted technology and a driven configuration of low-side.

  • Channel Type: Single
  • Mounting Technology: SMD (SMT)
  • Driven Configuration: Low-Side
  • Number of Drivers: 1
  • Gate Type: N-Channel MOSFET
  • Logic Voltage - VIL, VIH: 0.8V, 2V
  • Current-Peak Output (Source, Sink): 3A, 3A
  • Temperature Range: -55°C to 150°C (TJ)
  • Package: 6-MLP (2x2)
  • Supply Voltage: 4.5 V to 18 V
  • Rise Time: 13ns
  • Fall Time: 9ns
  • Quantity per Package: 3k pcs
