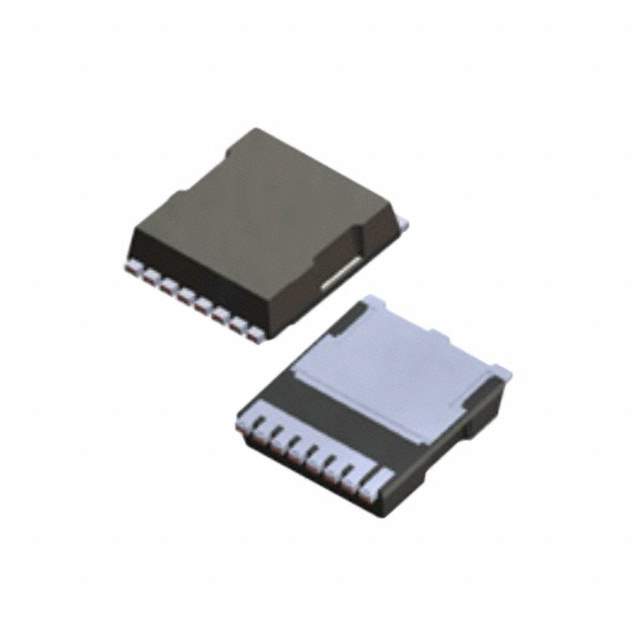

This Fairchild Semiconductor electronic component is a MOSFET transistor designed for discrete semiconductor products.

• Win Source Part Number: 1324731-FDBL0210N80
• Packaging: Bulk
• Standard Package: 1
• Technology: MOSFET (Metal Oxide)
• FET Type: N-Channel
• Drain to Source Voltage (Vdss): 80V
• Current - Continuous Drain (Id) @ 25°C: 240A (Tc)
• Rds On (Max) @ Id, Vgs: 2mOhm @ 80A, 10V
• Vgs(th) (Max) @ Id: 4V @ 250μA
• Power Dissipation (Max): 357W (Tj)
• Supplier Device Package: 8-HPSOF
• Gate Charge (Qg) (Max) @ Vgs: 169 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds: 10 pF @ 40 V
• Vgs (Max): ±20V
• Operating Temperature Range: -55°C ~ 175°C (TJ)
• HTSUS: 0000.00.0000
• Other Part Numbers: 2156-FDBL0210N80 and ONSFSCFDBL0210N80
• Drive Voltage: 10V (Max Rds On, Min Rds On)
