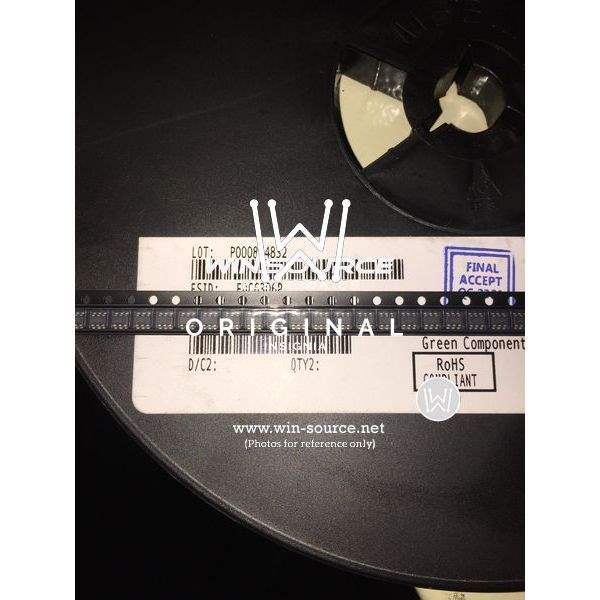

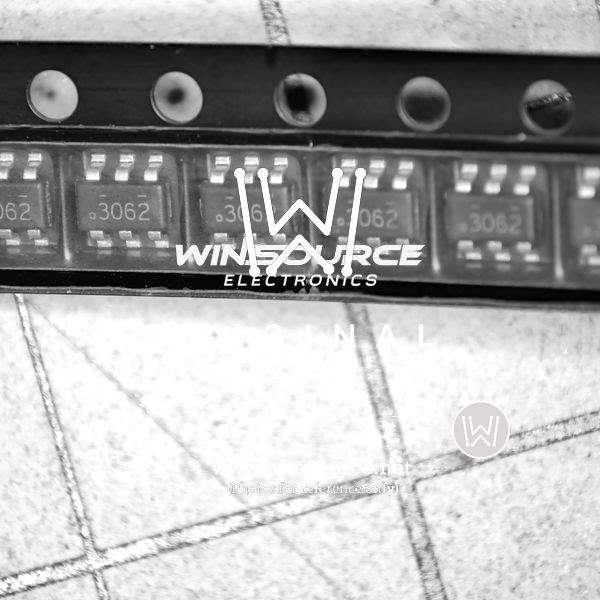

FDC6306P Fairchild/ON Semiconductor FDC6306P Real Image FDC6306P real image FDC6306P Real Image
Same model may have multiple batches, images only for reference.
FDC6306P Fairchild/ON Semiconductor FDC6306P Real Image FDC6306P real image FDC6306P Real Image
FDC6306P Fairchild/ON Semiconductor FDC6306P Real Image FDC6306P real image FDC6306P Real Image
Same model may have multiple batches, images only for reference.

FDC6306P

Part No FDC6306P
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2P-CH 20V 1.9A SSOT6 / Trans MOSFET P-CH 20V 1.9A 6-Pin TSOT-23 T/R
Datasheet
FDC6306P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
FET Type 2 P-Channel (Dual)
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 1.9A
Maximum Rds On at Id,Vgs 170 mOhm @ 1.9A, 4.5V
Gate-Source Threshold Voltage 1.5V @ 250μA
Max Gate Charge 4.2nC @ 4.5V
Max Input Capacitance 441pF @ 10V
Maximum Power Dissipation 700mW
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SuperSOT-6
Win Source Part Number 001135-FDC6306P
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 3k pcs
Family Name FDC6306P
Introduction Date March 17, 1999
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian FDC6306P CAD Model

Description

FDC6306P Description

The FDC6306P is a P-channel MOSFET known for its low voltage operation and high efficiency. It serves as an effective solution for load switch and DC-DC converter applications.

Applications

  • Power management in portable devices
  • Direct current to direct current converters
  • Power load switching

Features and Benefits

  • High efficiency with low voltage operation
  • Minimized on-resistance
  • Optimized for low power loss

Additional Details

The FDC6306P excels in battery-powered applications where power conservation is critical, providing a balance of performance and energy savings.
