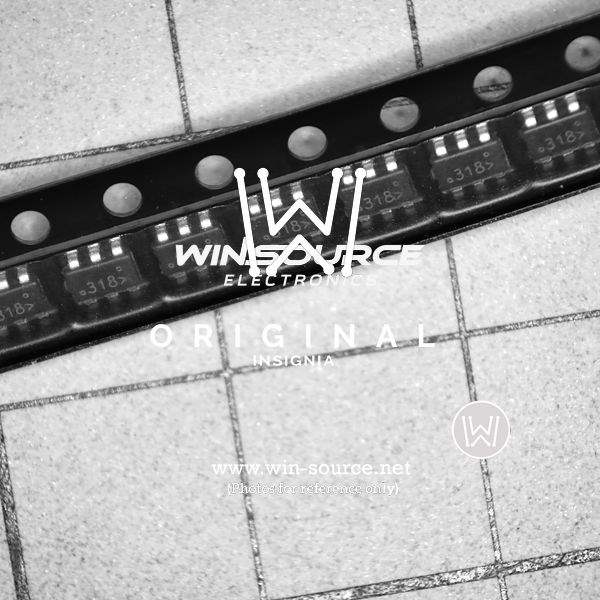

Same model may have multiple batches, images only for reference.

FDC6318P

Name: FDC6318P
Brand: Fairchild/ON Semiconductor
SKU: 453071
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	FDC6318P
Manufacturer	Fairchild/ON Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET 2P-CH 12V 2.5A SSOT-6
Datasheet	FDC6318P Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Fairchild/ON Semiconductor
Packaging	Reel - TR
Status	Active
FET Type	2 P-Channel (Dual)
FET Feature	Logic Level Gate
Drain-Source Breakdown Voltage	12V
Continuous Drain Current at 25°C	2.5A
Maximum Rds On at Id,Vgs	90 mOhm @ 2.5A, 4.5V
Gate-Source Threshold Voltage	1.5V @ 250μA
Max Gate Charge	8nC @ 4.5V
Max Input Capacitance	455pF @ 6V
Maximum Power Dissipation	700mW
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	SuperSOT-6
Win Source Part Number	1038022-FDC6318P
Popularity	Medium
Supply and Demand Status	Sufficient
Quantity per package	3k pcs
Ultra Librarian 3D Model	Ultra Librarian FDC6318P CAD Model

Description

The FDC6318P from Fairchild/ON Semiconductor is a 2 P-Channel (Dual) MOSFET featuring Logic Level Gate.

Application: Discrete Semiconductor Products
Mounting Type: SuperSOT-6
Power Dissipation: 700mW
Drain-Source Breakdown Voltage: 12V
Continuous Drain Current: 2.5A @ 25°C
Gate-Source Threshold Voltage: 1.5V @ 250μA
Gate Charge: 8nC @ 4.5V
Input Capacitance: 455pF @ 6V
Maximum Rds On @ Id,Vgs: 90 mOhm @ 2.5A, 4.5V
Temperature Range: -55°C to 150°C (TJ)
