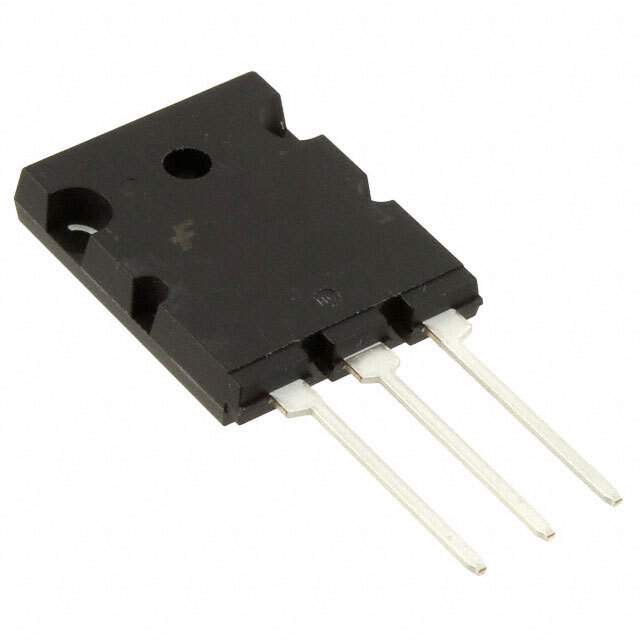

FDL100N50F Real Image FDL100N50F Real Image
Same model may have multiple batches, images only for reference.
FDL100N50F Real Image FDL100N50F Real Image
FDL100N50F Real Image FDL100N50F Real Image
Same model may have multiple batches, images only for reference.

FDL100N50F

Part No FDL100N50F
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description Trans MOSFET N-CH 500V 100A 3-Pin(3+Tab) TO-264AA Tube / MOSFET N-CH 500V 100A TO-264
Datasheet
FDL100N50F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 500V
Continuous Drain Current at 25°C 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 5V @ 250μA
Max Gate Charge 238nC @ 10V
Max Input Capacitance 12000pF @ 25V
Maximum Gate-Source Voltage ±30V
Power Dissipation (Max) 2500W (Tc)
Maximum Rds On at Id,Vgs 55 mOhm @ 50A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-264
Dimension TO-264-3, TO-264AA
Win Source Part Number 1038169-FDL100N50F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 375
Family Name FDL100N50F
Introduction Date September 14, 2004
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian FDL100N50F CAD Model

Description

The Fairchild/ON Semiconductor FDL100N50F is a MOSFET transistor manufactured by Fairchild/ON Semiconductor.

  • Supply and Demand Status: sufficient
  • Power Dissipation: 2500W (Tc)
  • Operating Temperature: -55°C to 150°C (TJ)
  • Package Types: TO-264-3 and TO-264AA
  • Applications: widely used in various electronic devices
