FDMC5614P

Part No FDMC5614P
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 60V 5.7A POWER33
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 60V
Continuous Drain Current at 25°C 5.7A (Ta), 13.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 3V @ 250μA
Max Gate Charge 20nC @ 10V
Max Input Capacitance 1055pF @ 30V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.1W (Ta), 42W (Tc)
Maximum Rds On at Id,Vgs 100 mOhm @ 5.7A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)

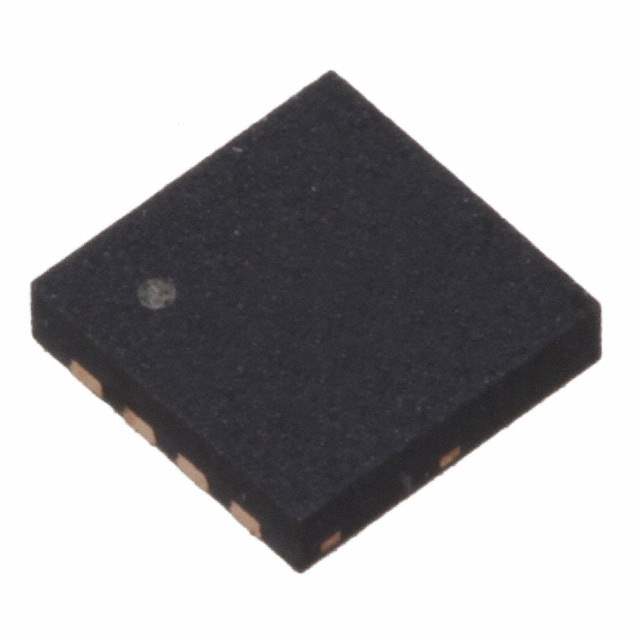

Case / Package 8-MLP (3.3x3.3), Power33
Dimension 8-PowerWDFN
Win Source Part Number 140551-FDMC5614P
Popularity Medium
Supply and Demand Status Limited
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDMC5614P CAD Model

Description

The FDMC5614P MOSFET is a P-channel, surface mount device manufactured by Fairchild/ON Semiconductor.

  • Drain-Source Breakdown Voltage: 60V
  • Maximum Continuous Drain Current: 5.7A @ 25°C, 13.5A @ Tc
  • Power Dissipation: 2.1W @ Ta, 42W @ Tc
  • Package: 8-MLP (3.3x3.3), Power33
  • Maximum Rds On: 100 mOhm @ 5.7A, 10V
  • Drive Voltage: 4.5V, 10V
  • Maximum Gate-Source Voltage: ±20V
  • Popularity: Medium
  • Quantity per Package: 3k pcs
