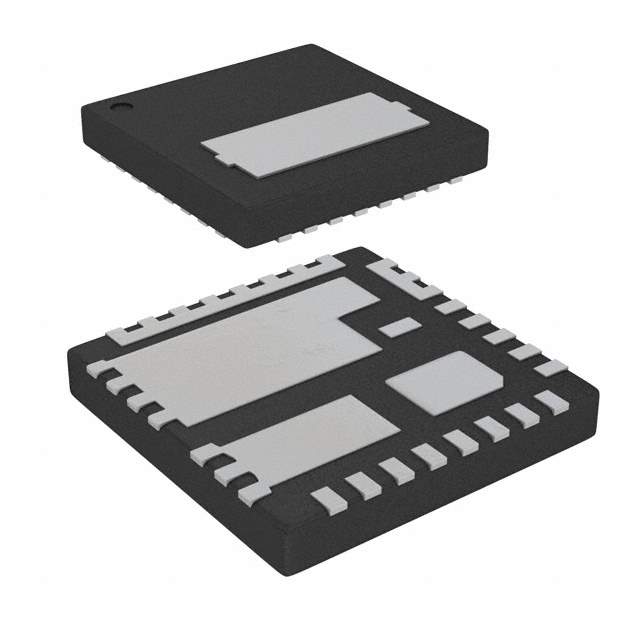

FDMF5820DC Real Image
Same model may have multiple batches, images only for reference.

FDMF5820DC

Part No FDMF5820DC
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Full, Half - Bridge Drivers
Description Smart Power Stage Module with Integrated Temperature Monitor
Datasheet
FDMF5820DC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Fairchild/ON Semiconductor
Series PowerTrench, SyncFET
Packaging Reel - TR
Output Configuration Half Bridge
Applications Synchronous Buck Converters
Interface PWM
Load Type Inductive
Technology UMOS
Rds On (Typ) 470 mOhm LS, 680 mOhm HS
Output Current per Channel 60A
Operating Supply Voltage 4.5 V ~ 5.5 V
Voltage - Load 4.5 V ~ 16 V
Operating Temperature Range -40°C ~ 125°C (TJ)
Features Bootstrap Circuit, Latch Function, Status Flag
Fault Protection Over Temperature, UVLO
Mounting SMD
Package 31-PowerWFQFN
Manufacturer Package 31-PQFN (5x5)
Win Source Part Number 1173824-FDMF5820DC
Manufacturer Homepage www.fairchildsemi.com
Family Name FDMF5820DC
Introduction Date September 30, 2013
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2022
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDMF5820DC CAD Model

Description

The Fairchild FDMF5820DC is an integrated circuit with a PowerTrench SyncFET series.

  • Package: 31-PowerWFQFN
  • Voltage Range: 4.5V to 5.5V
  • Output Current per Channel: 60A
  • Load Type: Inductive
  • Rds on (Typ): 470 mOhm LS, 680 mOhm HS
  • Operating Temperature Range: from -40°C to 125°C
  • Commonly Used In: Synchronous buck converters
  • Popularity: High popularity
  • Compliance: Compliant with halogen-free regulations
  • EOL Date: Estimated to have an EOL date of 2022
  • Manufacturer: Fairchild
  • Product Name: FDMF5820DC
