Same model may have multiple batches, images only for reference.

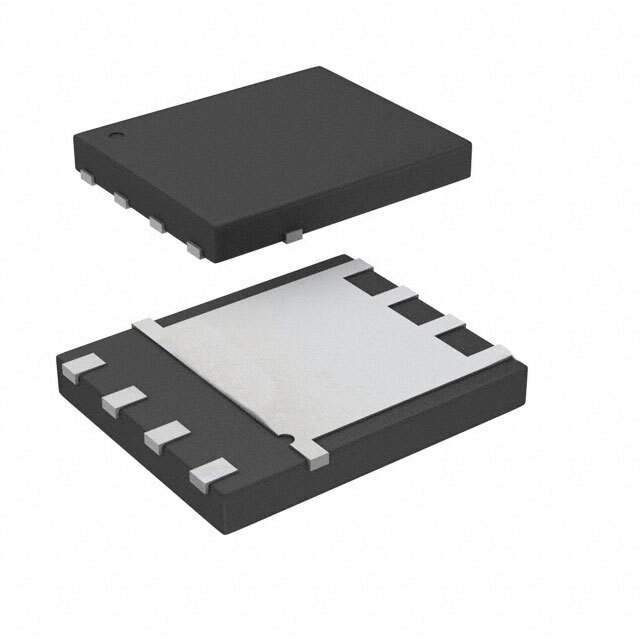

FDMS86152 Real Image
Same model may have multiple batches, images only for reference.

FDMS86152

Part No FDMS86152
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 100V 14A POWER56
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 100V
Continuous Drain Current at 25°C 14A (Ta), 45A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
Gate-Source Threshold Voltage 4V @ 250μA
Max Gate Charge 50nC @ 10V
Max Input Capacitance 3370pF @ 50V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.7W (Ta), 125W (Tc)
Maximum Rds On at Id,Vgs 6 mOhm @ 14A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package Power56
Dimension 8-PowerTDFN
Win Source Part Number 140230-FDMS86152
Popularity Medium
Supply and Demand Status Limited
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDMS86152 CAD Model

Description

The FDMS86152 is a MOSFET transistor manufactured by Fairchild/ON Semiconductor.

  • Supply and Demand: Limited, 3k pcs per package
  • Drain-Source Breakdown Voltage: 100V
  • Continuous Drain Current: 14A (Ta), 45A (Tc)
  • Gate-Source Threshold Voltage: 4V @ 250μA
  • Maximum Gate Charge: 50nC @ 10V
  • Maximum Rds On: 6 mOhm @ 14A, 10V
  • Operating Temperature: -55°C to 150°C
