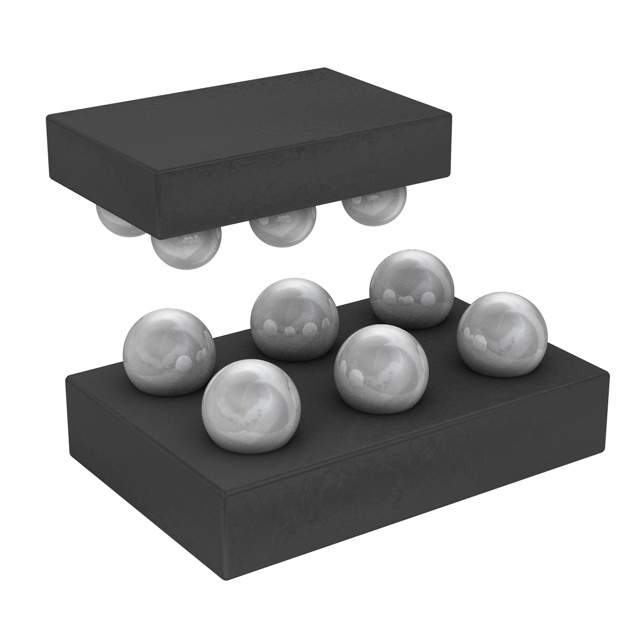

FDZ197PZ

Name: FDZ197PZ
Brand: Fairchild/ON Semiconductor
SKU: 453548
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	FDZ197PZ
Manufacturer	Fairchild/ON Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET P-CH 20V 3.8A 6-WLCSP
Datasheet	FDZ197PZ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Fairchild/ON Semiconductor
Packaging	Reel - TR
Status	Active
Polarity	P-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	20V
Continuous Drain Current at 25°C	3.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Gate-Source Threshold Voltage	1V @ 250μA
Max Gate Charge	25nC @ 4.5V
Max Input Capacitance	1570pF @ 10V
Maximum Gate-Source Voltage	±8V
Power Dissipation (Max)	1.9W (Ta)
Maximum Rds On at Id,Vgs	64 mOhm @ 2A, 4.5V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	6-WLCSP
Dimension	6-UFBGA, WLCSP
Win Source Part Number	1038498-FDZ197PZ
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	5k pcs
Ultra Librarian 3D Model	Ultra Librarian FDZ197PZ CAD Model

Alternative Products

Description

The Fairchild/ON Semiconductor FDZ197PZ is a P-channel polarity MOSFET electronic component that comes in a 6-WLCSP package.

Polarity: P-Channel
Package: 6-WLCSP
Drain-Source Breakdown Voltage: 20V
Continuous Drain Current: 3.8A @ 25°C (Ta)
Power Dissipation (Max): 1.9W (Ta)
Maximum Rds On @ Id, Vgs: 64 mOhm @ 2A, 4.5V
Gate-Source Threshold Voltage: 1V @ 250μA
Maximum Gate Charge: 25nC @ 4.5V
Maximum Input Capacitance: 1570pF @ 10V
Maximum Gate-Source Voltage: ±8V
Popularity: Medium
Status: Active
Supply and Demand Status: Balance
Package Quantity: 5k pcs
