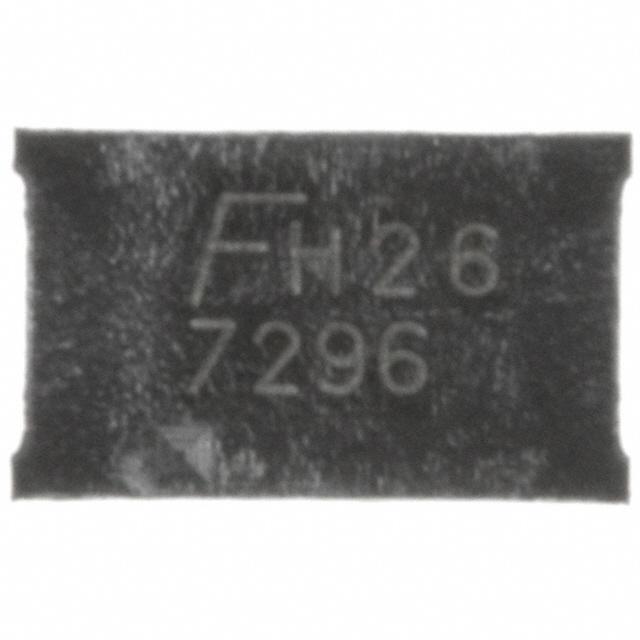

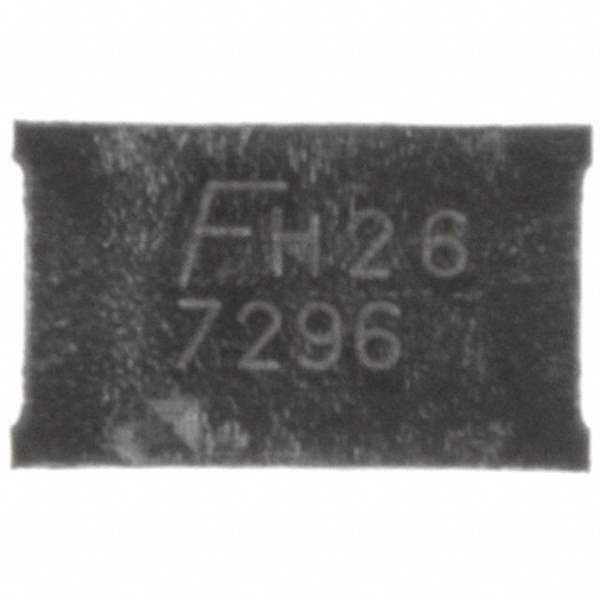

FDZ7296 Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FDZ7296

Part No FDZ7296
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description 30V N-Channel PowerTrench BGA MOSFET
Datasheet
FDZ7296 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Series PowerTrench
Packaging Reel - TR
Part Status Obsolete(EOL)
Channel Type Type N
Technology MOSFET
Drain Source Voltage 30V
Current - Continuous Drain (Id) @ 25°C 11A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Vgs(th) (Maximum) @ Id 3V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 31nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 1520pF @ 15V
Vgs (Maximum) ±20V
Power Dissipation (Maximum) 2.1W (Ta)
Rds On (Maximum) @ Id, Vgs 8.5 mOhm @ 11A, 10V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Manufacturer Package 18-BGA (2.5x4)
Package 18-WFBGA
Win Source Part Number 1173955-FDZ7296
Manufacturer Homepage www.fairchildsemi.com
Popularity Medium
Supply and Demand Status Limited
Family Name FDZ7296
Introduction Date November 18, 2004
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian FDZ7296 CAD Model

Description

The Fairchild/ON Semiconductor FDZ7296 is a MOSFET transistor with a channel type of N.

  • Channel Type: N
  • Series: PowerTrench
  • Operating Temperature: -55°C to 150°C
  • Continuous Drain Current: 11A
  • Drain Source Voltage: 30V
  • Packaging: 18-WFBGA
  • Mounting Type: Surface Mount
  • Supply and Demand Status: Limited, obsolete
