Same model may have multiple batches, images only for reference.

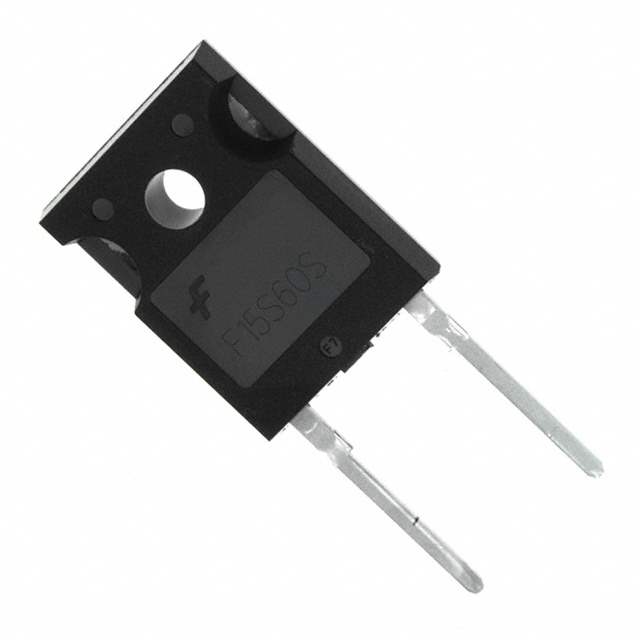

FFH15S60STU Real Image
Same model may have multiple batches, images only for reference.

FFH15S60STU

Part No FFH15S60STU
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 600V 15A TO247
Datasheet
FFH15S60STU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Obsolete(EOL)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 15A
Voltage - Forward (Vf) (Max) @ If 2.6V @ 15A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 35ns
Current - Reverse Leakage @ Vr 100μA @ 600V
Mounting Through Hole
Case / Package TO-247-2
Operating Temperature - Junction -65°C to 150°C
Win Source Part Number 067158-FFH15S60STU
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FFH15S60STU CAD Model

Description

The Fairchild/ON Semiconductor 067158-FFH15S60STU is a standard diode type with a maximum DC reverse voltage of 600V.

  • Maximum DC Reverse Voltage: 600V
  • Average Rectified Current: 15A
  • Forward Voltage: 2.6V @ 15A
  • Reverse Recovery Time: 35ns
  • Current Reverse Leakage: 100μA @ 600V
  • Package: TO-247-2
  • Mounting: Through-Hole
  • Operating Temperature: -65°C to 150°C
  • Category: Discrete Semiconductor Products
  • Status: Obsolete (EOL)
  • Supply and Demand: Balanced
