The FFP30S60S is a silicon rectifier diode manufactured by Fairchild/ON Semiconductor. It is designed for high-voltage, high-speed switching applications. This device is commonly used in power supplies, inverters, and other power conversion circuits.

Applications

• Power supplies (SMPS, etc.)
• Inverters
• Power factor correction (PFC) circuits
• Motor drives
• Uninterruptible power supplies (UPS)

Features

• Fast recovery time: Reduces switching losses.
• Low forward voltage drop: Enhances efficiency.
• High surge current capability: Provides robustness.
• High operating junction temperature: Suitable for demanding thermal conditions.
• High voltage capability (600V)

Benefits

• Increased efficiency in power conversion.
• Reduced switching losses.
• Improved reliability due to surge current withstanding.
• Simplified thermal management.
• Enhanced system performance in high-frequency applications.

Additional Details

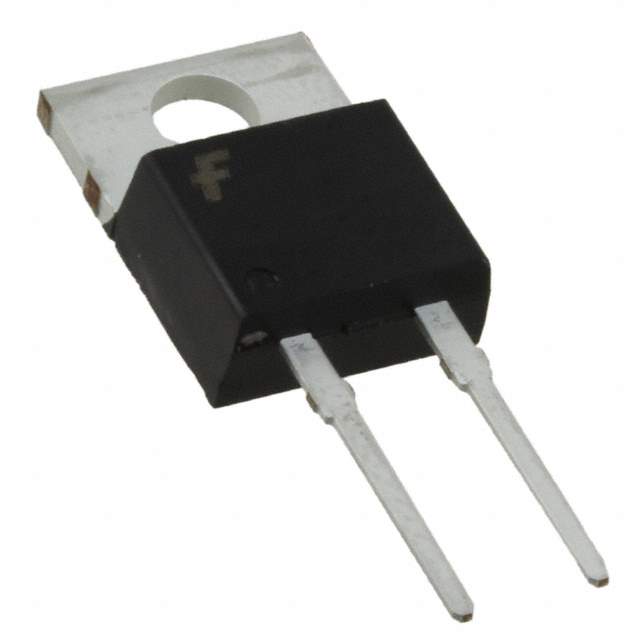

The FFP30S60S features a maximum repetitive peak reverse voltage of 600V and a forward current of 30A. It is designed for fast switching speeds, minimizing energy losses. The device typically comes in a TO-220 package. This diode's fast switching characteristics make it suitable for applications where efficiency and low EMI are important considerations.
