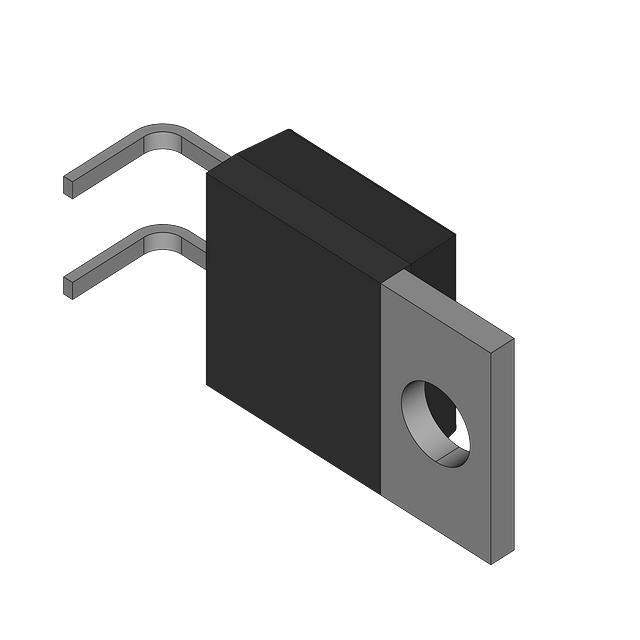

FFPF10UP30STTU Real Image
Same model may have multiple batches, images only for reference.

FFPF10UP30STTU

Part No FFPF10UP30STTU
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 300V 10A TO220F
Datasheet
FFPF10UP30STTU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Obsolete(EOL)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 300V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Max) @ If 1.4V @ 10A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 45ns
Current - Reverse Leakage @ Vr 100μA @ 300V
Mounting Through Hole
Case / Package TO-220F-2L
Operating Temperature - Junction -65°C to 150°C
Win Source Part Number 067176-FFPF10UP30STTU
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FFPF10UP30STTU CAD Model

Description

The FFPF10UP30STTU is a standard diode.

  • Maximum Reverse Voltage: 300V
  • Average Rectified Current: 10A
  • Voltage-Forward: 1.4V @ 10A
  • Reverse Recovery Time: 45ns
  • Current Reverse Leakage: 100μA @ 300V
  • Case/Package: TO-220F-2L
  • Fast Recovery Speed: 200mA (Io)
  • Status: Obsolete (EOL)
  • Supply and Demand Status: Balanced
