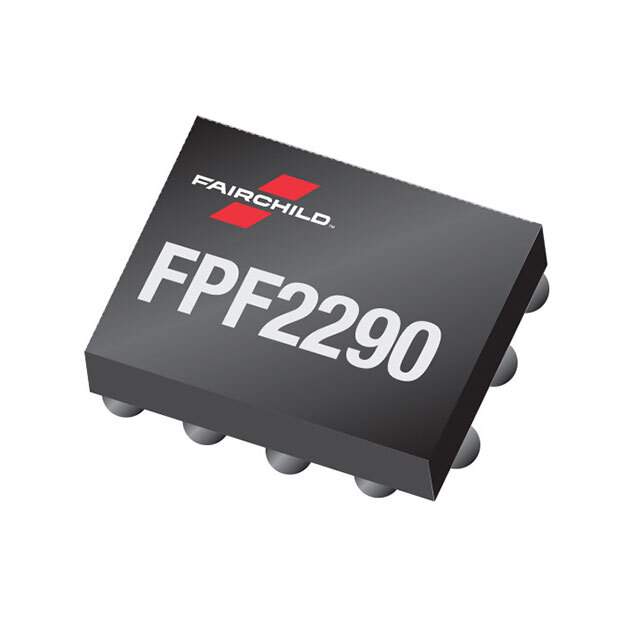

FPF2290BUCX_F130 Real Image
Same model may have multiple batches, images only for reference.

FPF2290BUCX_F130

Part No FPF2290BUCX_F130
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC LOAD SWITCH / High Power Switch IC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Fairchild/ON Semiconductor
Packaging Reel package
Switch Type General
Number of Outputs 1
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Voltage - Load 2.5 V ~ 23 V
Rds On (Typ) 33 mOhm
Fault Protection Over Temperature, Over Voltage
Operating Temperature Range -40°C ~ 85°C (TA)
Package 12-UFBGA, WLCSP
Manufacturer Package 12-WLCSP (1.29x1.83)
Win Source Part Number 774705-FPF2290BUCX_F130
Popularity Medium
Supply and Demand Status Limited
Family Name FPF2290B
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian FPF2290BUCX_F130 CAD Model

Description

The Fairchild/ON Semiconductor FPF2290BUCX_F130 is a high-side N-channel switch type IC.

  • Fault Protection: Over temperature and over voltage
  • Output Configuration: Single
  • Voltage Load: 2.5V ~ 23V
  • Rds On (Typ): 33mOhm
  • Package: 12-WLCSP (1.29x1.83)
  • Applications: Power management, battery-powered systems, and portable devices
