Same model may have multiple batches, images only for reference.

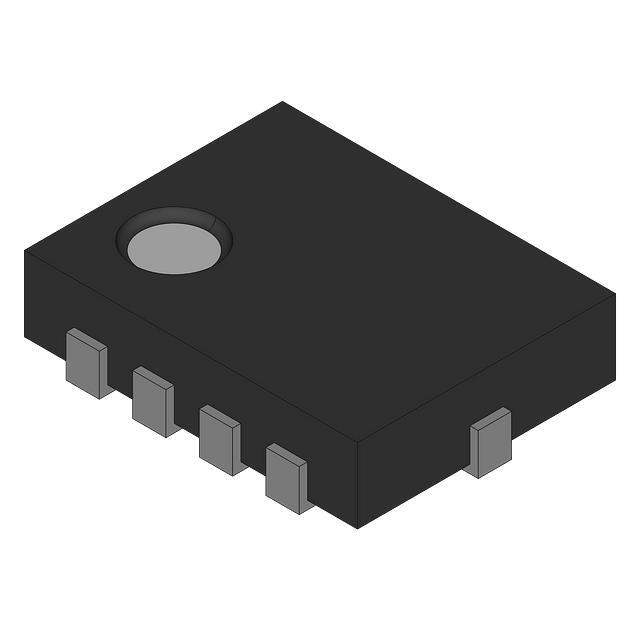

FSA321UMX Real Image
Same model may have multiple batches, images only for reference.

FSA321UMX

Part No FSA321UMX
Manufacturer Fairchild/ON Semiconductor
Catalog Interface - Analog Switches - Special Purpose
Description IC SWITCH MULTIMEDIA 10-UMLP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Applications Audio, USB
Switch Circuit DPDT
Number of Channels 1
Max On Resistance 2.7 Ohm (Audio), 11 Ohm (USB)
Single Supply Voltage (V+) 1.8 V to 4.3 V
-3db Bandwidth 720MHz
Features USB 2.0
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 10-UMLP (1.8x1.4)
Win Source Part Number 016507-FSA321UMX
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian FSA321UMX CAD Model

Description

The Fairchild/ON Semiconductor FSA321UMX is an integrated circuit with a DPDT switch circuit and USB 2.0 features.

  • -3db Bandwidth: 720MHz
  • Single Supply Voltage: 1.8V to 4.3V
  • Max On Resistance: 2.7 Ohm (Audio), 11 Ohm (USB)
  • Current Output High/Low: 4mA, 4mA
  • Package: 10-UMLP (1.8x1.4)
  • Temperature Range: -40°C to 85°C (TA)
  • Applications: Audio and USB
  • Popularity: Medium
