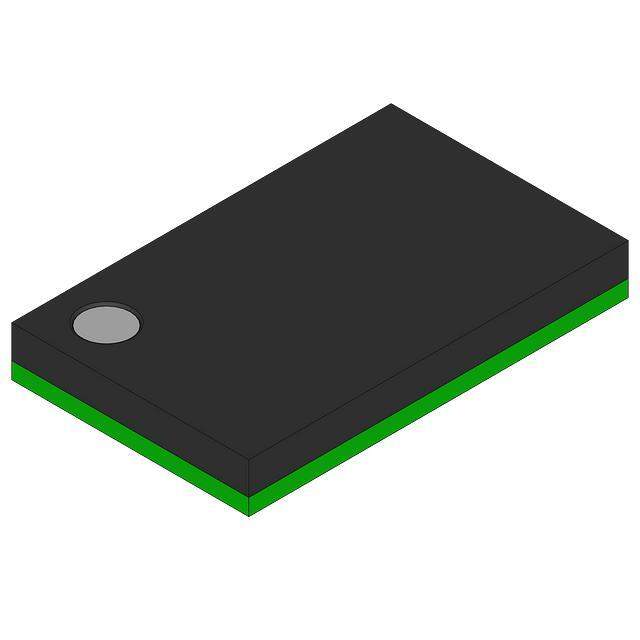

The FSLV16211GX is a 1-of-4 Hot Insertion/Hot Swap Dual Multiplexer/Demultiplexer with high-speed operation manufactured by Fairchild/ON Semiconductor. This device is designed to allow safe insertion of boards into a live backplane without causing glitches or signal disturbances. It minimizes signal distortion during live insertion and removal, making it suitable for applications where uninterrupted system operation is critical.

Applications:

• Live insertion and removal of cards in servers
• Hot-swappable components in networking equipment
• Telecommunications infrastructure
• Redundant systems requiring uninterrupted operation
• Data acquisition systems

Features:

• Hot insertion/hot swap capability
• Low on-state resistance
• Minimal signal distortion during insertion/removal
• 1-of-4 multiplexer/demultiplexer configuration
• High-speed operation
• Low power consumption

Benefits:

• Enables safe insertion and removal of boards without interrupting system operation
• Minimizes signal glitches and disturbances during live insertion
• Reduces downtime and improves system availability
• Offers flexibility in signal routing with multiplexer/demultiplexer functionality
• Suitable for high-speed data transfer applications

The FSLV16211GX device integrates features to minimize signal reflections and crosstalk during hot insertion, ensuring signal integrity. The low on-state resistance reduces voltage drop and power dissipation, contributing to energy efficiency. Its 1-of-4 multiplexer/demultiplexer configuration provides versatility in signal routing. The high-speed operation makes it suitable for demanding data transfer applications where uninterrupted operation is paramount.
