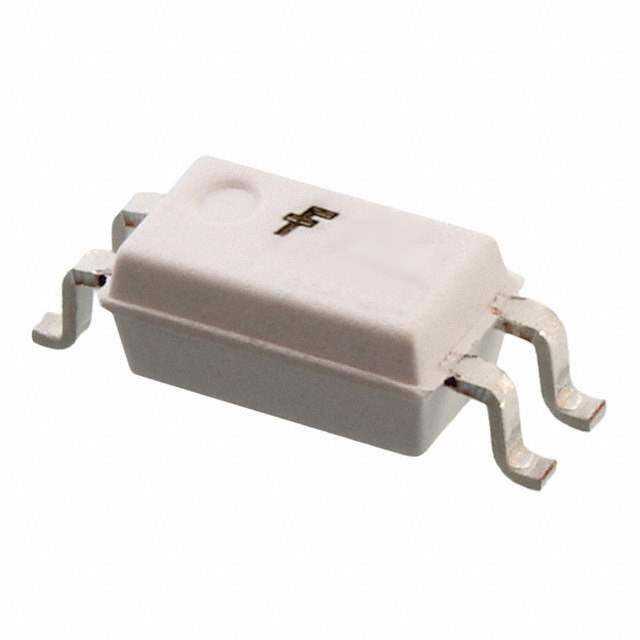

HMHA2801A

Name: HMHA2801A
Brand: Fairchild/ON Semiconductor
SKU: 147077
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HMHA2801A
Manufacturer	Fairchild/ON Semiconductor
Catalog	Optoisolators - Transistor, Photovoltaic Output
Description	OPTOISO 3.75KV TRANS 4-MINI-FLAT
Datasheet	HMHA2801A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Isolators
Manufacturer	Fairchild/ON Semiconductor
Packaging	Reel - TR
Status	Active
Number of Channels	1
Isolation Voltage	3750Vrms
Minimum DC Current Transfer Ratio	80% @ 5mA
Maximum DC Current Transfer Ratio	160% @ 5mA
Rise and Fall Time	3μs, 3μs
Input Type	DC
Output Type	Transistor
Maximum Output Voltage	80V
Channel Output Current	50mA
Forward Voltage	1.3V (Max)
Continuous forward current- Max	50mA
Vce Saturation (Max)	300mV
Temperature Range - Operating	-55°C to 100°C
Mounting	SMD (SMT)
Case / Package	4-Mini-Flat
Win Source Part Number	068172-HMHA2801A
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	3k pcs
Ultra Librarian 3D Model	Ultra Librarian HMHA2801A CAD Model

Description

The Fairchild/ON Semiconductor HMHA2801A is a transistor output type component with a 1.3V (Max) forward voltage and a DC input type. It has a number of channels of 1 and a Vce saturation (Max) of 300mV. The isolation voltage is 3750Vrms and it falls under the category of isolators. The temperature range for operating is -55°C to 100°C. The supply and demand status is limited. The package consists of 3k pcs.
