The Fairchild/ON Semiconductor Fairchild/ON Semiconductor electronic component, with part number 068303-HUF75652G3, is a discrete semiconductor product that features MOSFET technology with N-channel polarity.

• Power Dissipation (max): 515W (Tc)
• Drive Voltage (max Rds On, Min Rds On): 10V
• Status: Active
• Temperature Range: -55°C to 175°C (TJ)

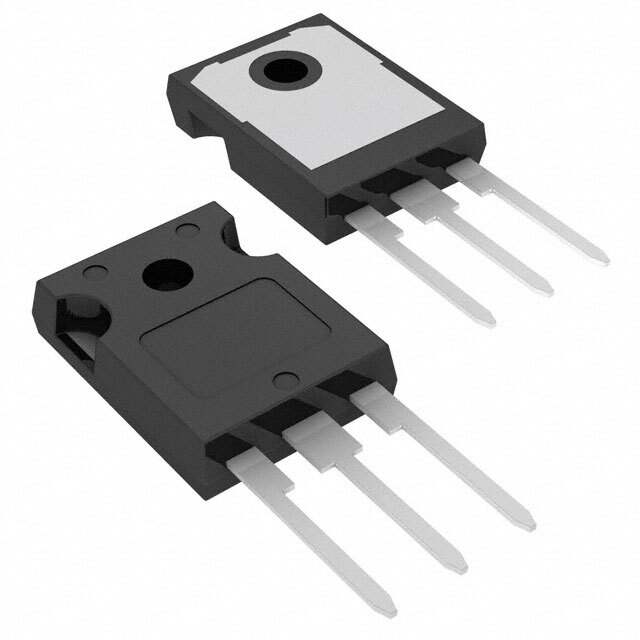

• Case / Package Dimension: TO-247-3
• Drain-Source Breakdown Voltage: 100V
• Continuous Drain Current at 25°C: 75A (Tc)
• Gate-Source Threshold Voltage: 4V @ 250μA
• Maximum Gate Charge: 475nC @ 20V
• Maximum Input Capacitance: 7585pF @ 25V
• Maximum Gate-Source Voltage: ±20V
• Maximum Rds On at Id,Vgs: 8 mOhm @ 75A, 10V
• Supply and Demand Status: Limited
• Quantities per Package: 450
