The KA1M0380RB is a Fairchild/ON Semiconductor power switch designed for offline switched-mode power supply (SMPS) applications. It integrates a Pulse Width Modulation (PWM) controller and a high-voltage SenseFET, providing a cost-effective and compact solution for various power supply designs. It's commonly used in applications that require high efficiency and reliable power conversion.

Applications:

• Power Adapters
• Auxiliary Power Supplies
• Standby Power Supplies
• Battery Chargers
• Open-frame Power Supplies

Features:

• Integrated PWM Controller and SenseFET
• High Voltage Capability
• Over Voltage Protection (OVP)
• Over Current Protection (OCP)
• Thermal Shutdown Protection (TSD)
• Under Voltage Lockout (UVLO)
• Internal Avalanche Rugged SenseFET

Benefits:

• Reduced Component Count simplifies design and lowers BOM cost.
• Improved Efficiency due to the integrated SenseFET and optimized PWM control.
• Enhanced System Reliability through built-in protection features.
• Simplified PCB Layout with integrated functionality.
• High Power Density allows for smaller and more compact power supply designs.

Additional Details:

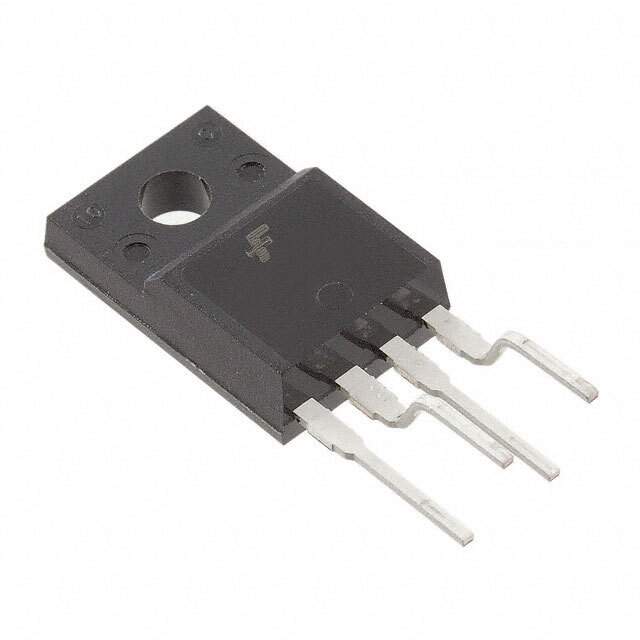

The KA1M0380RB operates with a fixed switching frequency and incorporates various protection features to ensure reliable operation under fault conditions. It typically comes in a TO-220 or similar package. Key specifications include the drain-source breakdown voltage, drain current rating, and operating temperature range. The device is optimized for low standby power consumption and complies with energy efficiency standards. It's suitable for a wide range of consumer electronics and industrial applications.
