Same model may have multiple batches, images only for reference.

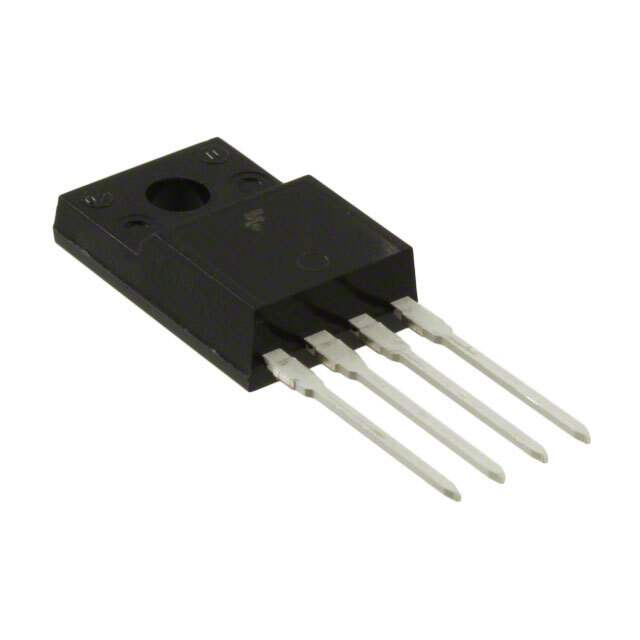

KA78R09CTU Real Image
Same model may have multiple batches, images only for reference.

KA78R09CTU

Part No KA78R09CTU
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 9V 1A TO220F-4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 35V
Nominal Output Voltage (Min/Fixed) 9V
Dropout Voltage-Max 0.5V @ 1A
Output Current 1A
Operating Supply Current 10mA
Control Features Enable
Protection Features Over Current, Over Temperature, Over Voltage, Short Circuit
Temperature Range - Operating -20°C to 80°C
Regulator Topology Positive Fixed
Output Voltage 9V
Voltage - Dropout (Typical) 0.5V @ 1A
Mounting Through Hole
Case / Package TO-220F-4L
Win Source Part Number 018202-KA78R09CTU
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian KA78R09CTU CAD Model

Description

The Fairchild/ON Semiconductor KA78R09CTU is an integrated circuit regulator designed for positive fixed topology.

  • Dropout Voltage: 0.5V @ 1A
  • Maximum Input Voltage: 35V
  • Output Voltage: 9V (fixed)
  • Output Current: 1A
  • Package: TO-220F-4L
  • Protection Features: Over current, over temperature, over voltage, and short circuit
  • Sold In: Packages of 50
