Same model may have multiple batches, images only for reference.

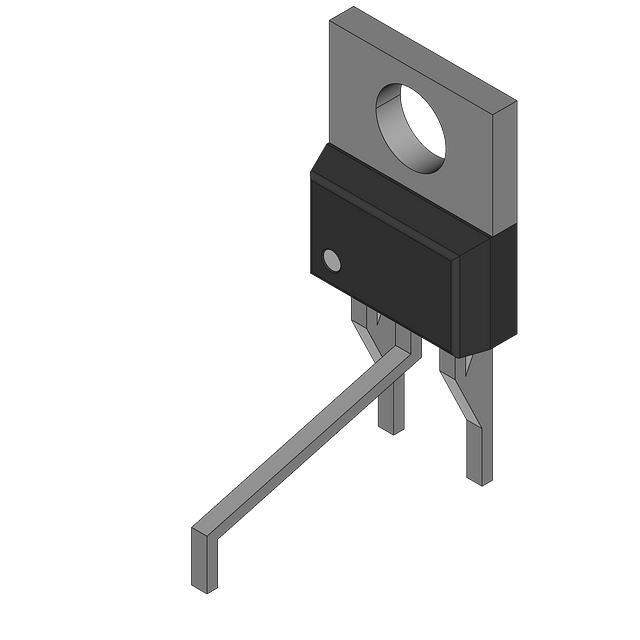

KSD986YSTSSTU Real Image
Same model may have multiple batches, images only for reference.

KSD986YSTSSTU

Part No KSD986YSTSSTU
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors (BJT) - Single
Description TRANS NPN DARL 80V 1.5A TO-126
Datasheet
KSD986YSTSSTU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Obsolete(EOL)
Transistor Polarity NPN - Darlington
Maximum Current Collector 1.5A
VCEO Maximum Collector-Emitter Breakdown Voltage 80V
Max Vce (sat) 1.5V @ 1mA, 1A
Collector Cut-off Current(Max) 10μA (ICBO)
Typical Gain (hFE) (Min) 8000 @ 1A, 2V
Maximum Power Dissipation 1W
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package TO-126-3
Win Source Part Number 1050994-KSD986YSTSSTU
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian KSD986YSTSSTU CAD Model

Description

The 430662 from Fairchild/ON Semiconductor is a NPN Darlington transistor with a maximum current collector of 1.5A and VCEO maximum collector-emitter breakdown voltage of 80V.

  • Maximum Power Dissipation: 1W
  • Typical Gain (hFE): 8000 @ 1A, 2V
  • Mounting: Through hole
  • Package: TO-126-3
  • Designed for: Use in discrete semiconductor products
  • Status: Obsolete (EOL)
  • Temperature Range: Up to 150°C (TJ)
  • Collector Cut-Off Current (max): 10μA (ICBO)
  • Maximum Saturation Voltage (Vce sat): 1.5V @ 1mA, 1A
  • Supply and Demand Status: Sufficient
