Same model may have multiple batches, images only for reference.

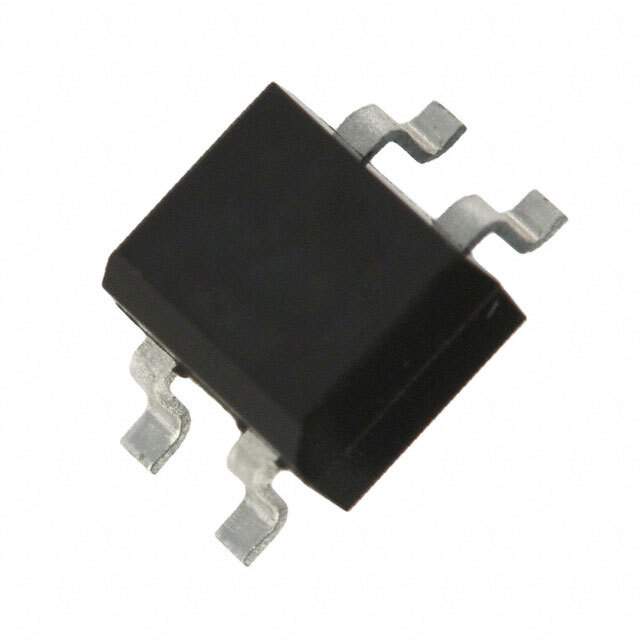

MB1S Real Image
Same model may have multiple batches, images only for reference.

MB1S

Part No MB1S
Manufacturer Fairchild/ON Semiconductor
Catalog Bridge Rectifiers
Description IC BRIDGE RECT 0.5A 100V 4-SOIC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Fairchild Semiconductor
Standard Package 1
Category Discrete Semiconductor Products
Family Bridge Rectifiers
Packaging Reel
Diode Type Single Phase
Voltage - Peak Reverse (Max) 100V
Current - DC Forward (If) (Max) 500mA
Mounting Style SMD/SMT
Package TO-269AA 4-BESOP
Manufacturer Device Package 4-SOIC
Catalog SMT Bridge Rectifiers
Win Source Part Number 074229-MB1S
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MB1S CAD Model

Description

The 224140 is a bridge rectifier from Fairchild Semiconductor with a part number of 074229-MB1S.

  • Popularity: high popularity
  • Supply and Demand Status: balance supply and demand status
  • Voltage Peak Reverse (max): 100V
  • Current DC Forward (If) (max): 500mA
  • Package: TO-269AA 4-BESOP
  • Manufacturer Device Package: 4-SOIC
  • Diode Type: single-phase
