Same model may have multiple batches, images only for reference.

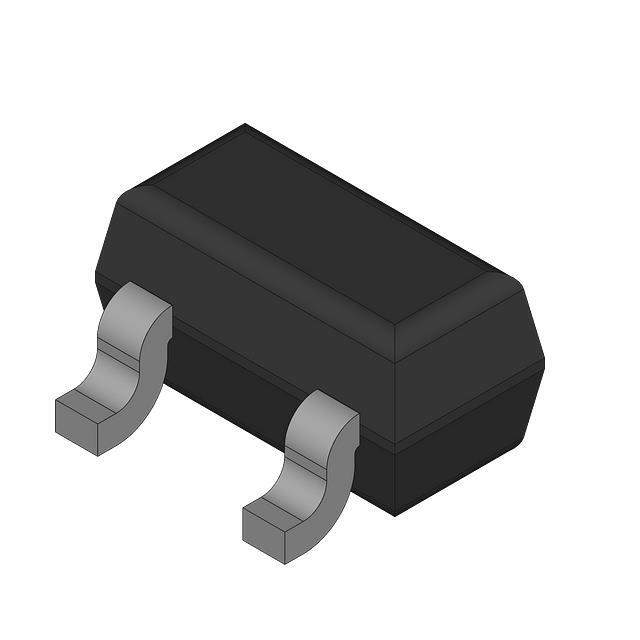

MMBT2222AT Real Image
Same model may have multiple batches, images only for reference.

MMBT2222AT

Part No MMBT2222AT
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors (BJT) - Single
Description TRANS NPN 40V 0.6A SC75-3
Datasheet
MMBT2222AT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Reel - TR
Status Active
Transistor Polarity NPN
Maximum Current Collector 600mA
VCEO Maximum Collector-Emitter Breakdown Voltage 40V
Max Vce (sat) 1V @ 50mA, 500mA
Typical Gain (hFE) (Min) 100 @ 150mA, 10V
Maximum Power Dissipation 150mW
Frequency - Transition 300MHz
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SC-75, SOT-416
Win Source Part Number 084309-MMBT2222AT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MMBT2222AT CAD Model

Description

The MMBT2222AT is an NPN transistor with a maximum current collector of 600mA and a VCEO maximum collector-emitter breakdown voltage of 40V.

  • Maximum current collector: 600mA
  • VCEO maximum collector-emitter breakdown voltage: 40V
  • Maximum Vce (sat): 1V @ 50mA and 500mA
  • Typical gain (hFE) (Min): 100 @ 150mA, 10V
  • Maximum power dissipation: 150mW
  • Operating temperature range: -55°C to 150°C (TJ)
  • Frequency transition: 300MHz
  • Package: SC-75, SOT-416 package
  • Supply and demand status: balanced
