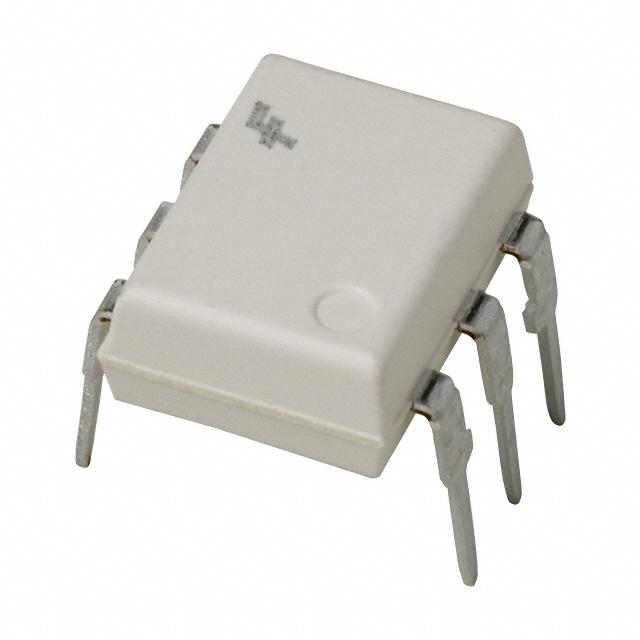

MOC3062V-M Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

MOC3062V-M

Part No MOC3062V-M
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 4.17KV TRIAC 6DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Isolation Voltage 4170Vrms
Voltage - Off State 600V
Static dV/dt (Min) 600V/μs
Current - LED Trigger (Ift) (Max) 10mA
Current - Hold (Ih) 500μA (Typ)
Forward Voltage 1.3V
Continuous forward current- Max 60mA
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Case / Package 6-DIP
Approvals IEC/EN/DIN, UL
Win Source Part Number 059301-MOC3062V-M
Ultra Librarian 3D Model Ultra Librarian MOC3062V-M CAD Model

Description

The Fairchild/ON Semiconductor 059301-MOC3062V-M is an isolator with an output type of triac.

  • Output Type: Triac
  • Forward Voltage: 1.3V
  • Isolation Voltage: 4170Vrms
  • Number of Channels: 1
  • Voltage-Off State: 600V
  • Package: 6-DIP
  • Mounting Type: Through-Hole
  • Current-Hold (Ih): 500μA (Typ)
  • Current-LED Trigger (Ift) (max): 10mA
  • Zero Crossing Circuit: Yes
  • Static dV/dt (min): 600V/μs
  • Category: Isolators
  • Status: Active
  • Temperature Range: -40°C to 85°C
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Package Contains: 1k pcs
