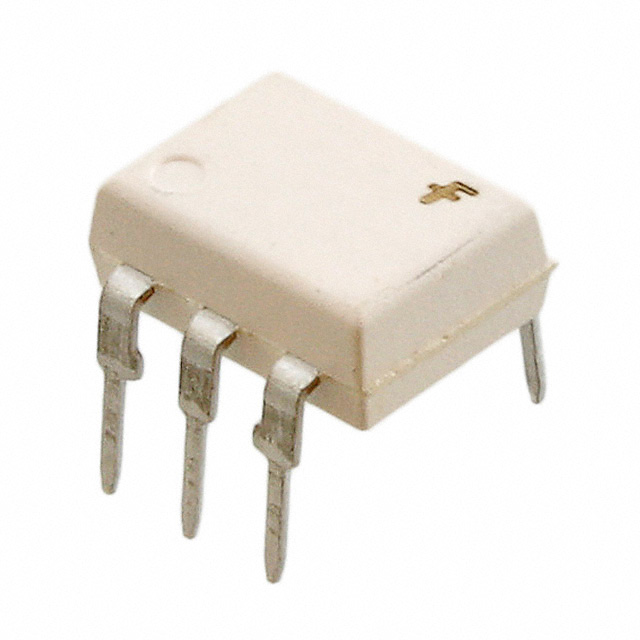

Same model may have multiple batches, images only for reference.
MOC3063-V Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

MOC3063-V

Part No MOC3063-V
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 4.17KV TRIAC 6DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Isolation Voltage 4170Vrms
Voltage - Off State 600V
Static dV/dt (Min) 600V/μs
Current - LED Trigger (Ift) (Max) 5mA
Current - Hold (Ih) 500μA (Typ)
Forward Voltage 1.3V
Continuous forward current- Max 60mA
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Case / Package 6-DIP
Approvals IEC/EN/DIN, UL
Win Source Part Number 238319-MOC3063-V
Ultra Librarian 3D Model Ultra Librarian MOC3063-V CAD Model

Description

The Fairchild/ON Semiconductor MOC3063-V is a through-hole mounted optocoupler with a triac output type.

  • Forward Voltage: 1.3V
  • Off-State Voltage: 600V
  • Isolation Voltage: 4170Vrms
  • Static dV/dt: 600V/μs
  • LED Trigger Current: 5mA
  • Hold Current: 500μA (typ)
  • Approvals: IEC/EN/DIN and UL
  • Package: 6-DIP
