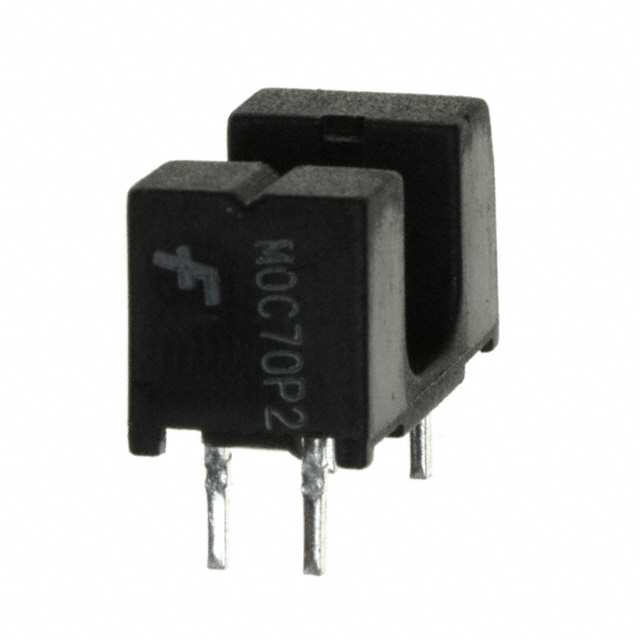

MOC70P2 Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

MOC70P2

Part No MOC70P2
Manufacturer Fairchild/ON Semiconductor
Catalog Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Description SENS OPTO SLOT 5.08MM TRANS THRU
Datasheet
MOC70P2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Obsolete(EOL)
Sensing Distance 0.200" (5.08mm)
Sensing Method Transmissive
Continuous forward current- Max 50mA
Maximum Current Collector 20mA
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Response Time 20μs, 80μs
Temperature Range - Operating -55°C to 100°C
Mounting Through Hole
Type Unamplified
Win Source Part Number 208643-MOC70P2
Ultra Librarian 3D Model Ultra Librarian MOC70P2 CAD Model

Description

The Fairchild/ON Semiconductor 208643-MOC70P2 is an unamplified type electronic component with a sensing distance of 0.200" (5.08mm).

  • Maximum Current Collector: 20mA
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 30V
  • Mounting Type: Through Hole
  • Operating Temperature: -55°C to 100°C
  • Sensing Method: Transmissive
