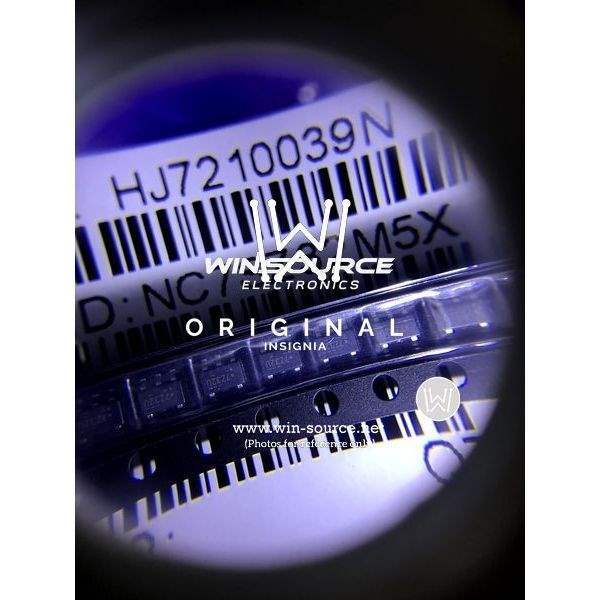

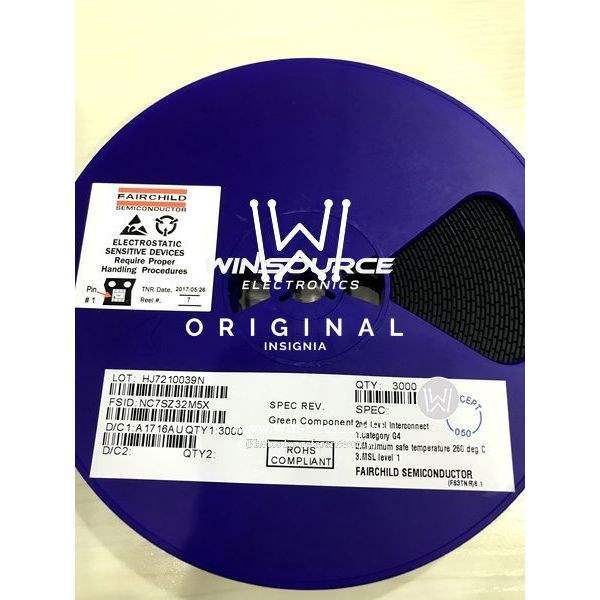

NC7SZ32M5X_NL Fairchild/ON Semiconductor NC7SZ32M5X_NL label picture NC7SZ32M5X_NL real image
Same model may have multiple batches, images only for reference.
NC7SZ32M5X_NL Fairchild/ON Semiconductor NC7SZ32M5X_NL label picture NC7SZ32M5X_NL real image
NC7SZ32M5X_NL Fairchild/ON Semiconductor NC7SZ32M5X_NL label picture NC7SZ32M5X_NL real image
Same model may have multiple batches, images only for reference.

NC7SZ32M5X_NL

Part No NC7SZ32M5X_NL
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Gates and Inverters
Description OR Gate IC 1 Channel  SOT-23-5
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits(ICs)
Family Logic - Gates and Inverters
Manufacturer Fairchild Semiconductor
Series 7SZ
Packaging Reel(TR)
Logic Type OR Gate
Number of Circuits 1
Number of Inputs 2
Operating Supply Voltage 1.65 V ~ 5.5 V
Current - Quiescent (Max) 2μA
Current - Output High, Low 32mA, 32mA
Max Propagation Delay @ V, Max CL 4.5ns @ 5V, 50pF
Operating Temperature Range -40°C ~ 85°C
Mounting Style SMD/SMT
Manufacturer Device Package SOT-23-5
Package SC-74A, SOT-753
Win Source Part Number 003710-NC7SZ32M5X_NL
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian NC7SZ32M5X_NL CAD Model

Description

The NC7SZ32M5X_NL is an integrated circuit manufactured by Fairchild Semiconductor.

  • Type: Logic gate and inverter
  • Series: 7SZ
  • Circuits: Single
  • Inputs: Two
  • Voltage Range: 1.65 V to 5.5 V
  • Quiescent Current: 2μA
  • Propagation Delay: 4.5ns @ 5V
  • Max CL: 50pF
  • Suitability: Industrial applications
