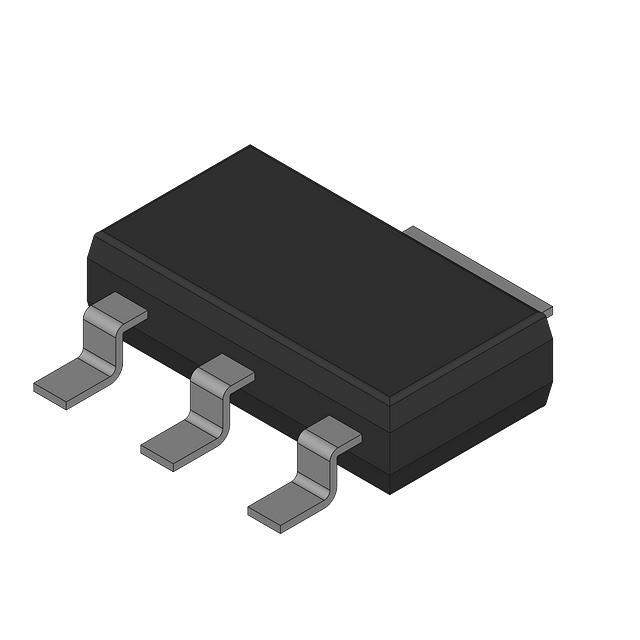

NZT45H8 Real Image
Same model may have multiple batches, images only for reference.

NZT45H8

Part No NZT45H8
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors (BJT) - Single
Description Trans GP BJT PNP 60V 8A 1500mW 4-Pin(3+Tab) SOT-223 T/R / TRANS PNP 60V 8A SOT-223
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Transistor Polarity PNP
Maximum Current Collector 8A
VCEO Maximum Collector-Emitter Breakdown Voltage 60V
Max Vce (sat) 1V @ 400mA, 8A
Collector Cut-off Current(Max) 10μA (ICBO)
Typical Gain (hFE) (Min) 40 @ 4A, 1V
Maximum Power Dissipation 1.5W
Frequency - Transition 40MHz
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-223-4
Win Source Part Number 025884-NZT45H8
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 4k pcs
Family Name NZT45H8
Introduction Date November 03, 1997
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian NZT45H8 CAD Model

Description

The NZT45H8 is a PNP transistor from Fairchild/ON Semiconductor with a maximum collector-emitter breakdown voltage of 60V.

  • Collector-Emitter Breakdown Voltage: 60V
  • Popularity: High
  • Supply and Demand Status: Balanced
  • Transistor Type: PNP
  • Application: Various electronic applications
